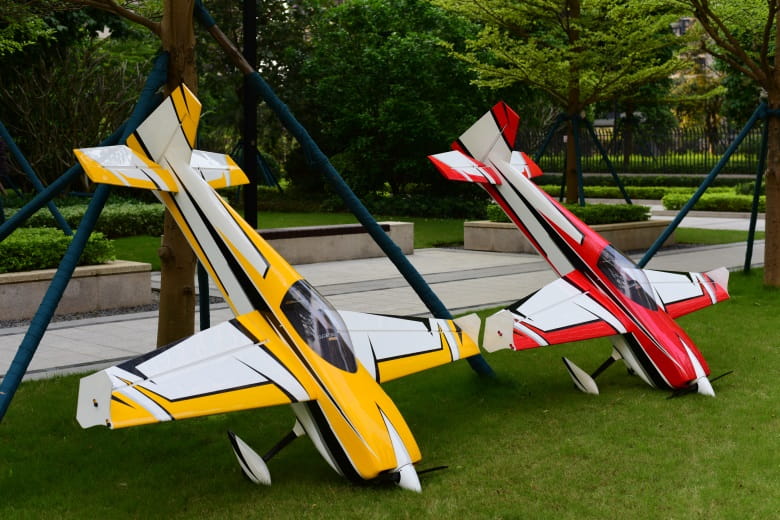

Skywing - Laser 260 - 89"

Basic information:

Wingspan: 89 in / 2260 mm

Length: 89,1 in / 2267 mm

Wing area: 1345,8 m2 / 86,1 dm2

Weight: 20,28 lbs / 9,1 kg

What's in the box:

• Construction made of a combination of wooden plywood and carbon fiber
• Skywing patented quick assembly of the cabin, wings and horizontal stabilizers
• Main landing gear mounting reinforced with aluminum angles
• Engine house made of wooden plywood and carbon fiber
• Muffler tunnel made of material resistant to high temperatures, oil and gasoline
• Main landing gear made of carbon fiber with prepared holes for installation
• Prepared tail landing gear made of carbon fiber with a steering wheel
• Wing tube and horizontal stabilizer tubes made of carbon fiber
• Glued hinges for all control surfaces (wing ailerons, elevator, rudder)
• Taped gaps on ailerons and elevators
• Carbon fiber horns
• Quickly removable rudder
• Wheels for the main landing gear with aluminum axles
• Covers with pre-drilled mounting holes
• Servo cables for horizontal stabilizers and rudder mounted in a protective sleeve
• High-quality ball snaps and pushers for all control surfaces
• Fuel tank with accessories (fuel tubes, fuel filler, vent cap)
• Various types of "canister" silencer mountings prepared
• Carbon spinner with aluminum base and propeller drilling template
• Side force generator for wings
• Wing and horizontal stabilizers covers
• 2 color variants available:
• White – Red (cover color number: white – 10, red – 23, corsair blue – 19, pearl charcoal – 77)
• White – Yellow (cover color number: white – 10, yellow – 30, corsair blue – 19, pearl charcoal – 77)

Note: This product is shipped in a single box measuring 188 x 72 x 38 cm (weight - 17.5 kg).

What you need to complete the set:

• Gasoline engine with a capacity of 60 – 70 cm3
• Carbon propeller (24x8, 24x9, 24x10)
• Gas servo with high-speed metal gears – 1 piece
• Servo with metal gears with high torque (min. 40 kg or more) – 5 pieces
• Servo arms - Ailerons: 1.5” – 2 pieces, Elevator: 1.75” – 2 pieces, Rudder: 1.75” – 1 piece
• Extension cable for throttle: approx. 400 mm
• Extension cable for servos mounted in the aileron: approx. 100 mm – 2 pieces
