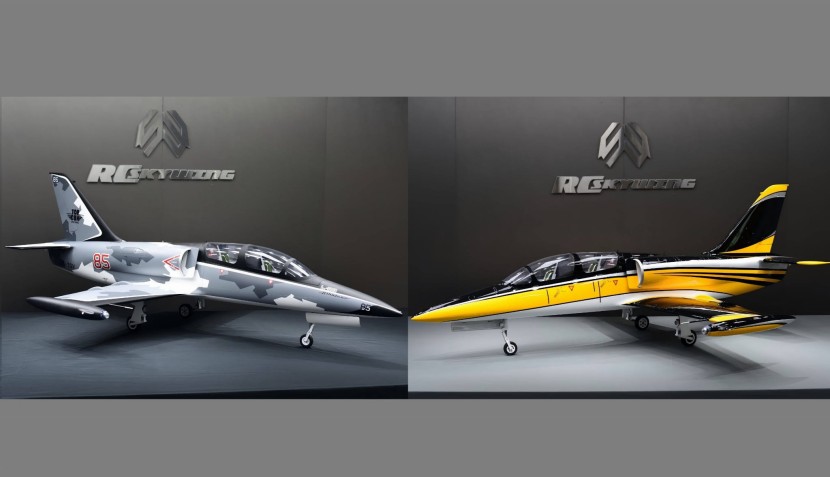

Skywing - L39

Basic information

Wingspan: 68,5 in / 1738 mm

Length: 85,9 in / 2182 mm

Weight (without fuel): 13 – 14 kg

What's in the box:

• High-quality servo cables
• Carbon tubes for wings and horizontal stabilizers
• Jet pipe
• Vector (including vector putter)
• Covers for the fuselage, wings and horizontal stabilizers
• Fuel tank (3500 ml)
• Smoke tank (1000 ml)
• UAT tank (200 ml)
• Equipment for the fuel system (fuel lines, 2 x fuel filler, 2 x air vent)
• High-quality magic ties for battery installation
• Pushrod
• Retractable JP landing gear
• Power connectors (3 x XT60E yellow, 1 x XT60E black)
• Mounted wing connectors
• Marking board for measuring each control surface
• Aircraft mounting stand
• Available in 2 color variants:
• Grey
• Yellow – Black

Note: This product is shipped in two separate packages. The package no 1 has dimensions 134 x 79 x 42 cm (weight – 17.9 kg), the package no 2 has dimensions 96 x 60 x 24 cm (weight – 7 kg).

What you need to complete the set:

Servos:

• Flaps – 2 pieces (dimensions 40x20 mm with a minimum pull of 38 kg)
• Ailerons – 2 pieces (dimensions 35x15 with a minimum pull of 15 kg)
• Elevators – 2 pieces (dimensions 35x15 with a minimum pull of 15 kg)
• Rudder – 1 piece (dimensions 35x15 with a minimum pull of 15 kg)
• Front steering wheel – 1 piece (dimensions 35x15 with a minimum pull of 15 kg)

Servo levers:

• Flaps – 1.25” M3 - 2 pieces
• Ailerons – 1.0” M3 – 2 pieces
• Elevators – 1.0” M3 – 2 pieces
• Rudder – 1.0” M3 – 1 piece
• Front steering wheel – 1.0” M3 – 1 piece
