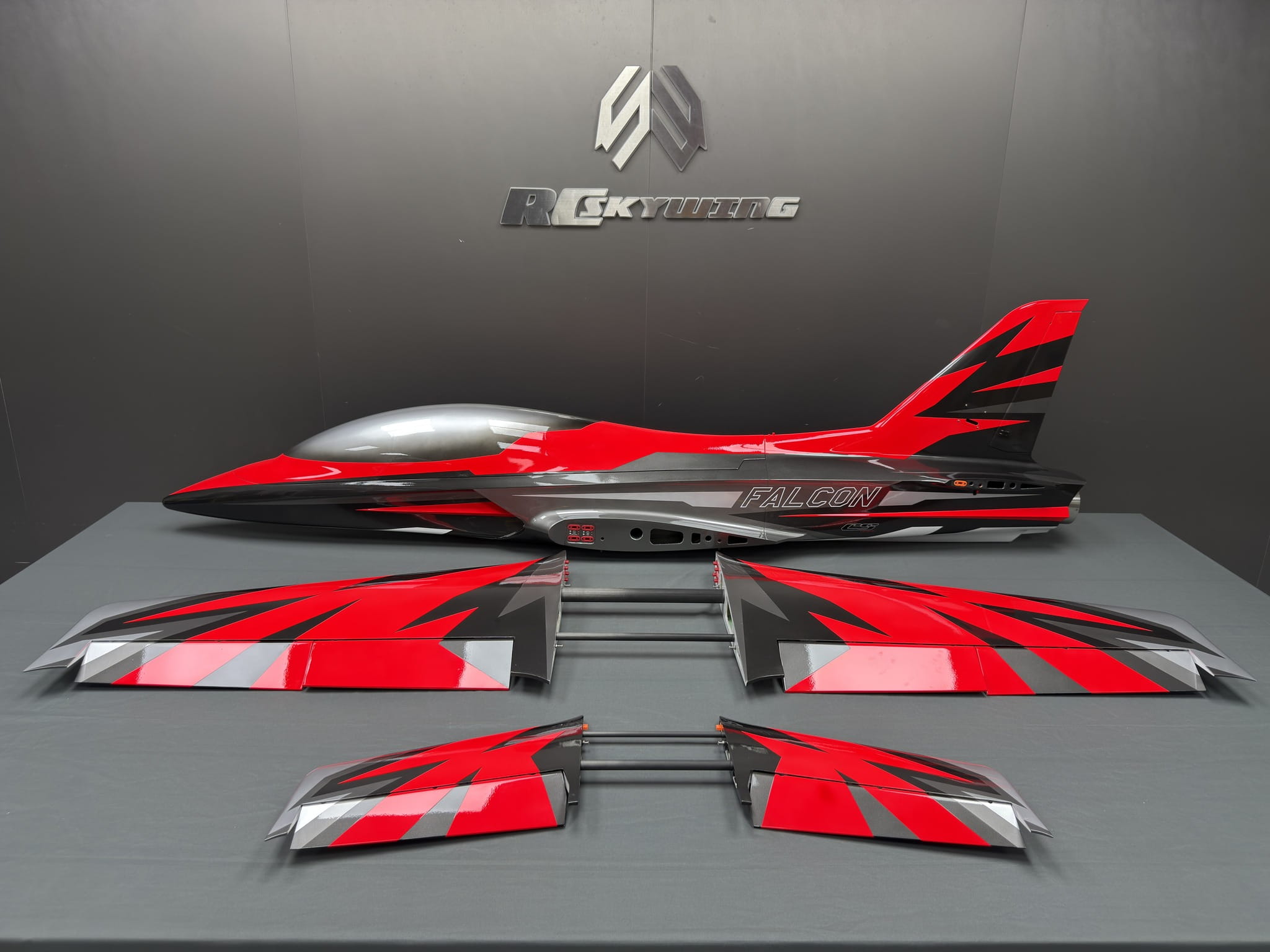

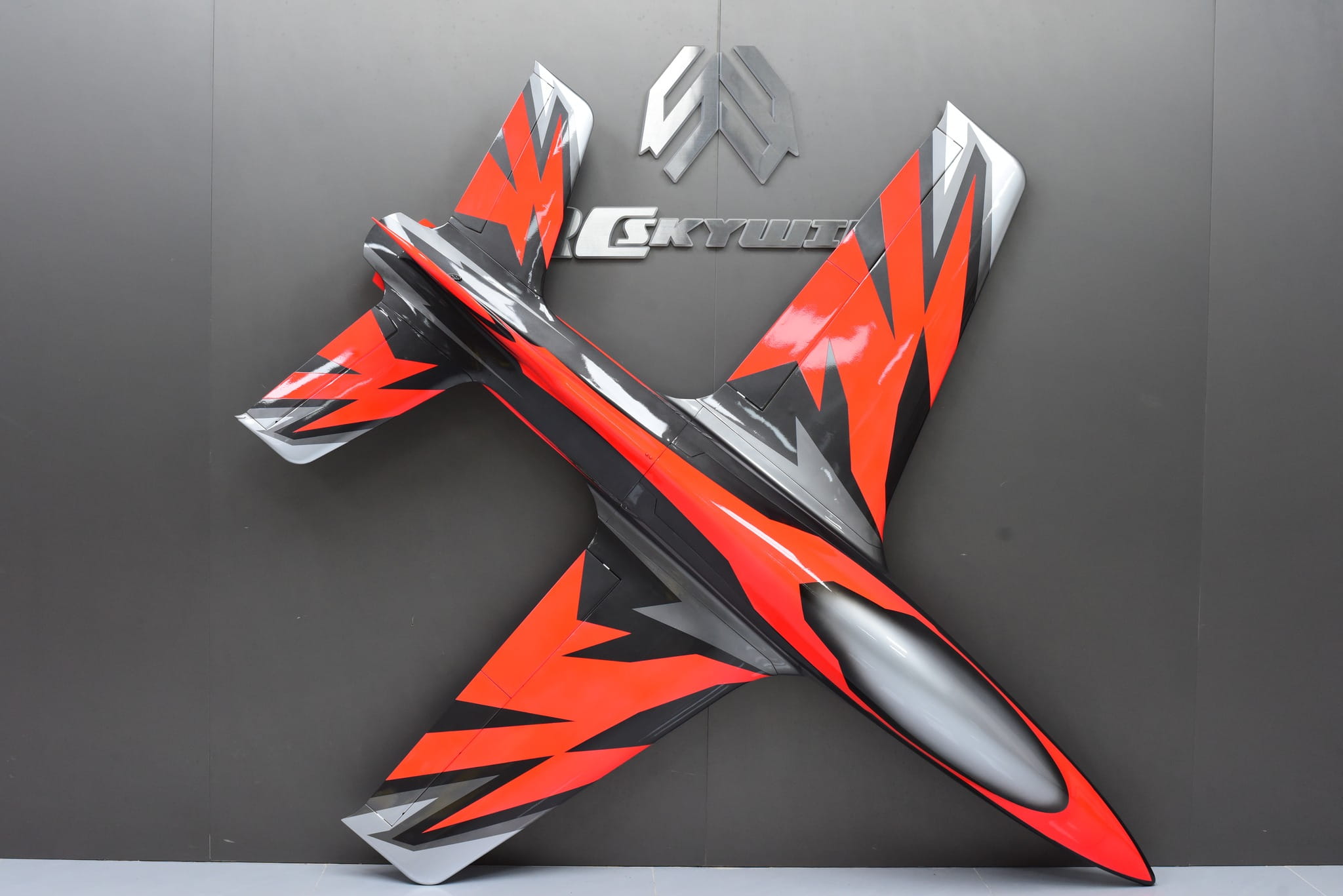

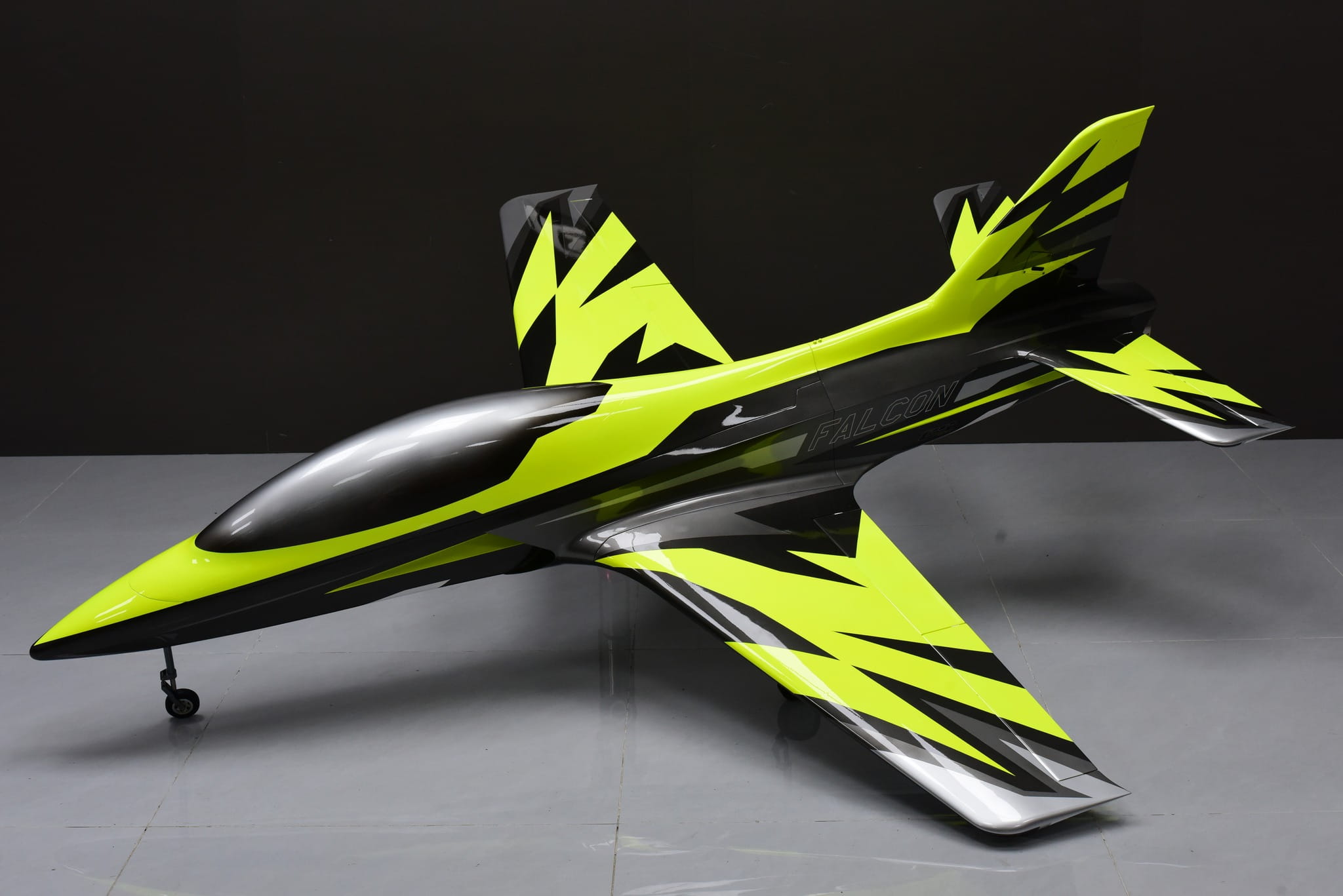

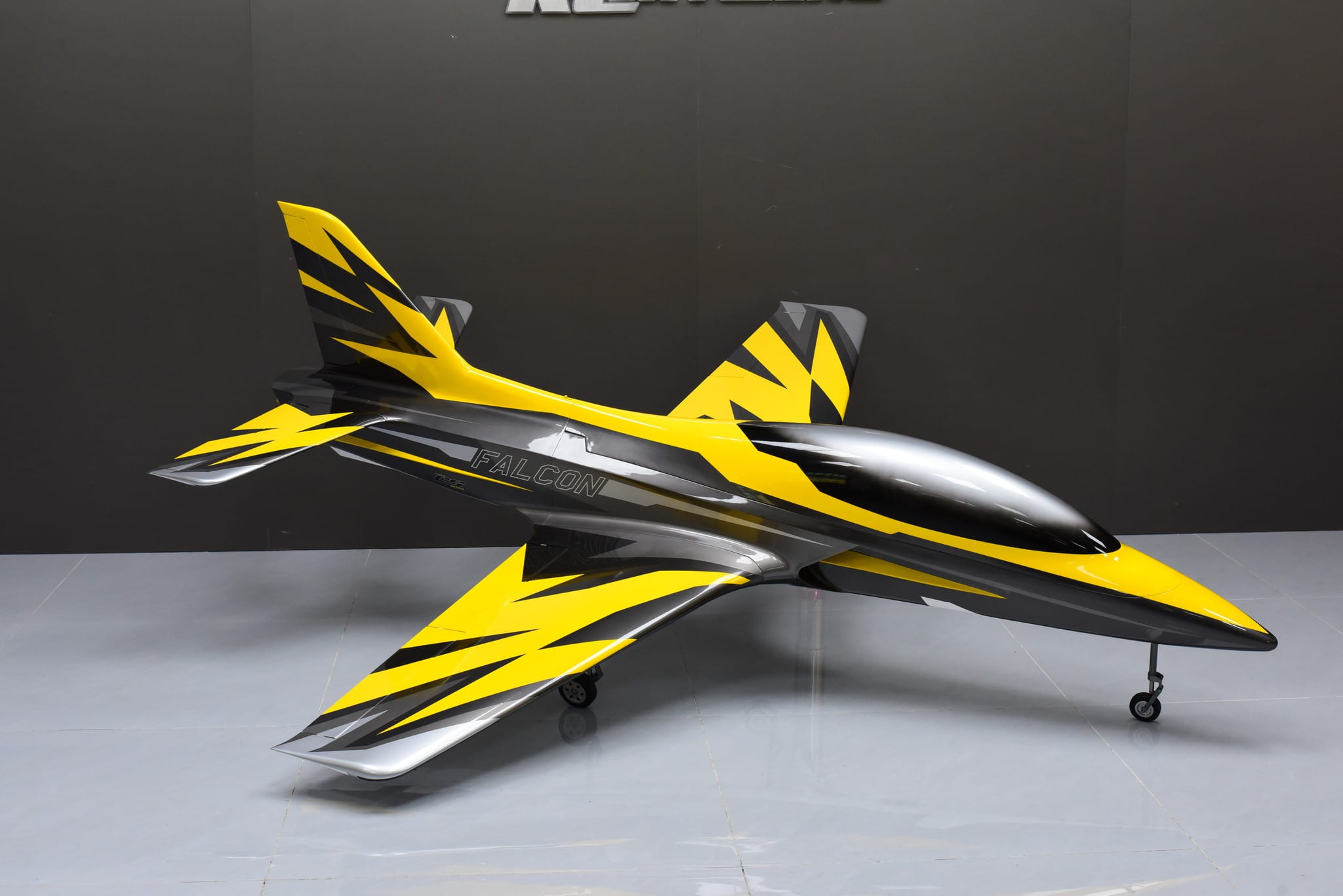

Skywing - Falcon 96"

Basic information

Wingspan: 89 in / 2257 mm

Length: 96 in / 2437 mm

Weight (without fuel): 14,7 kg

What's in the box:

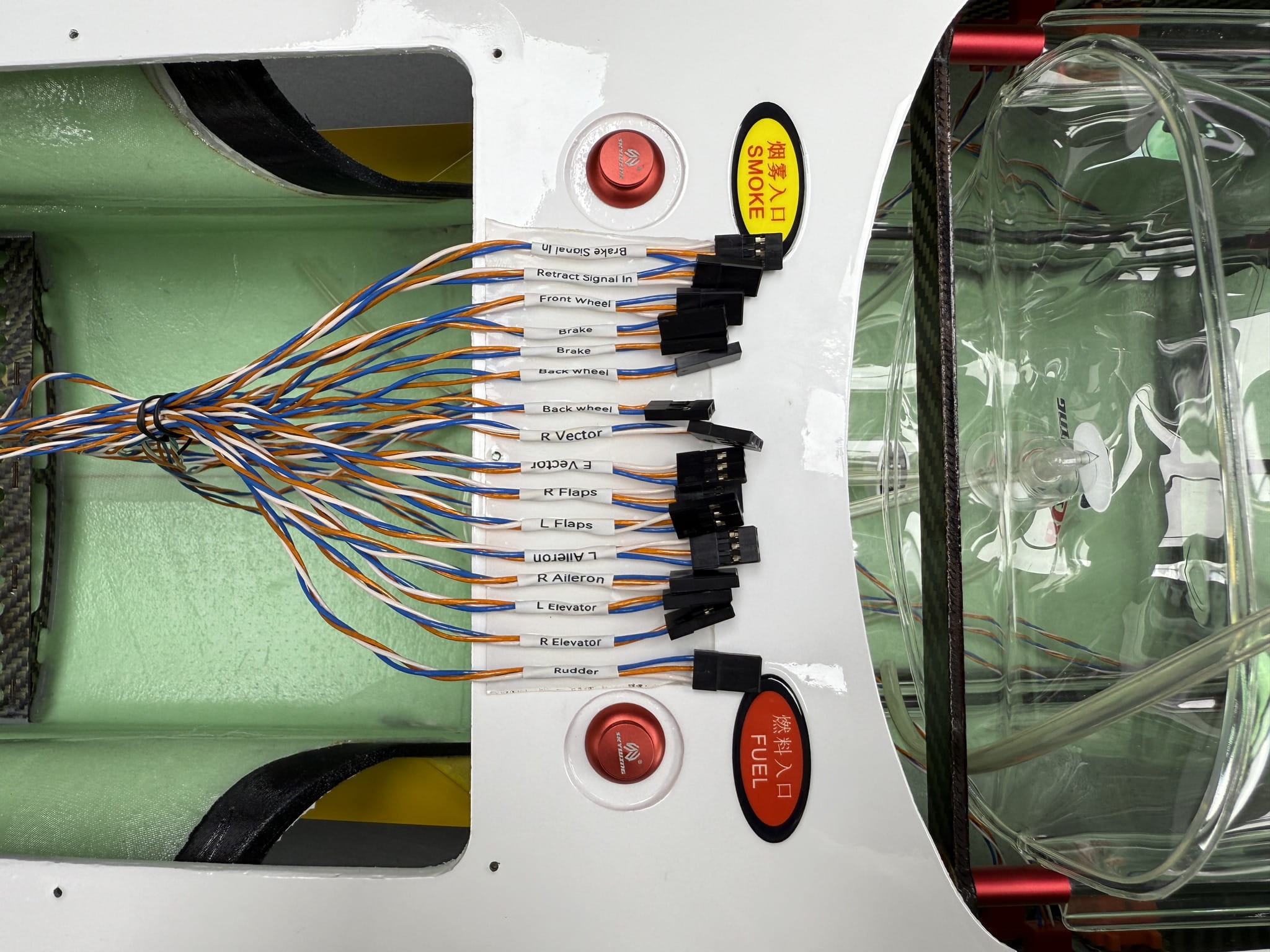

• High-quality servo cables
• Carbon tubes for wings and horizontal stabilizers

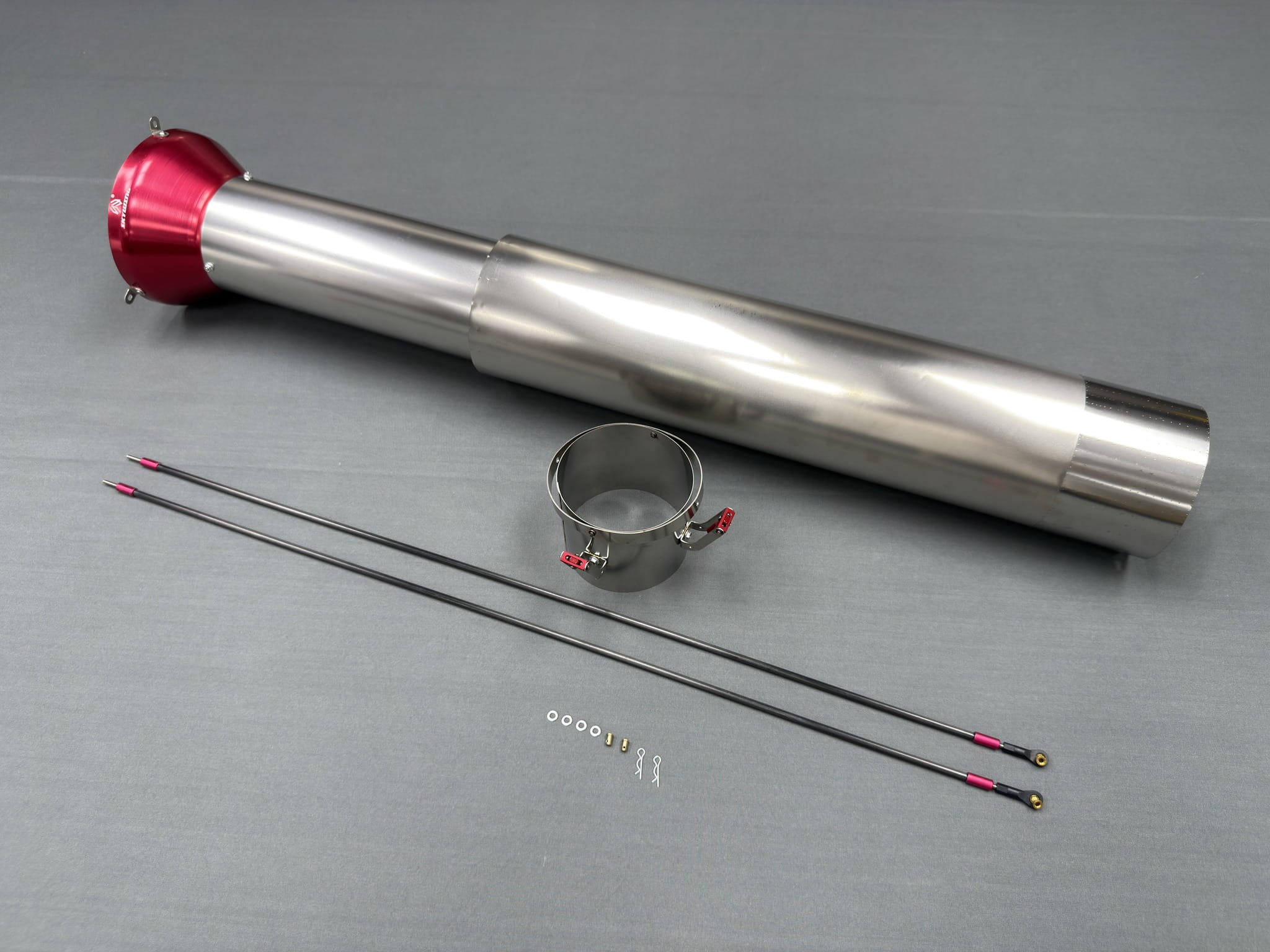

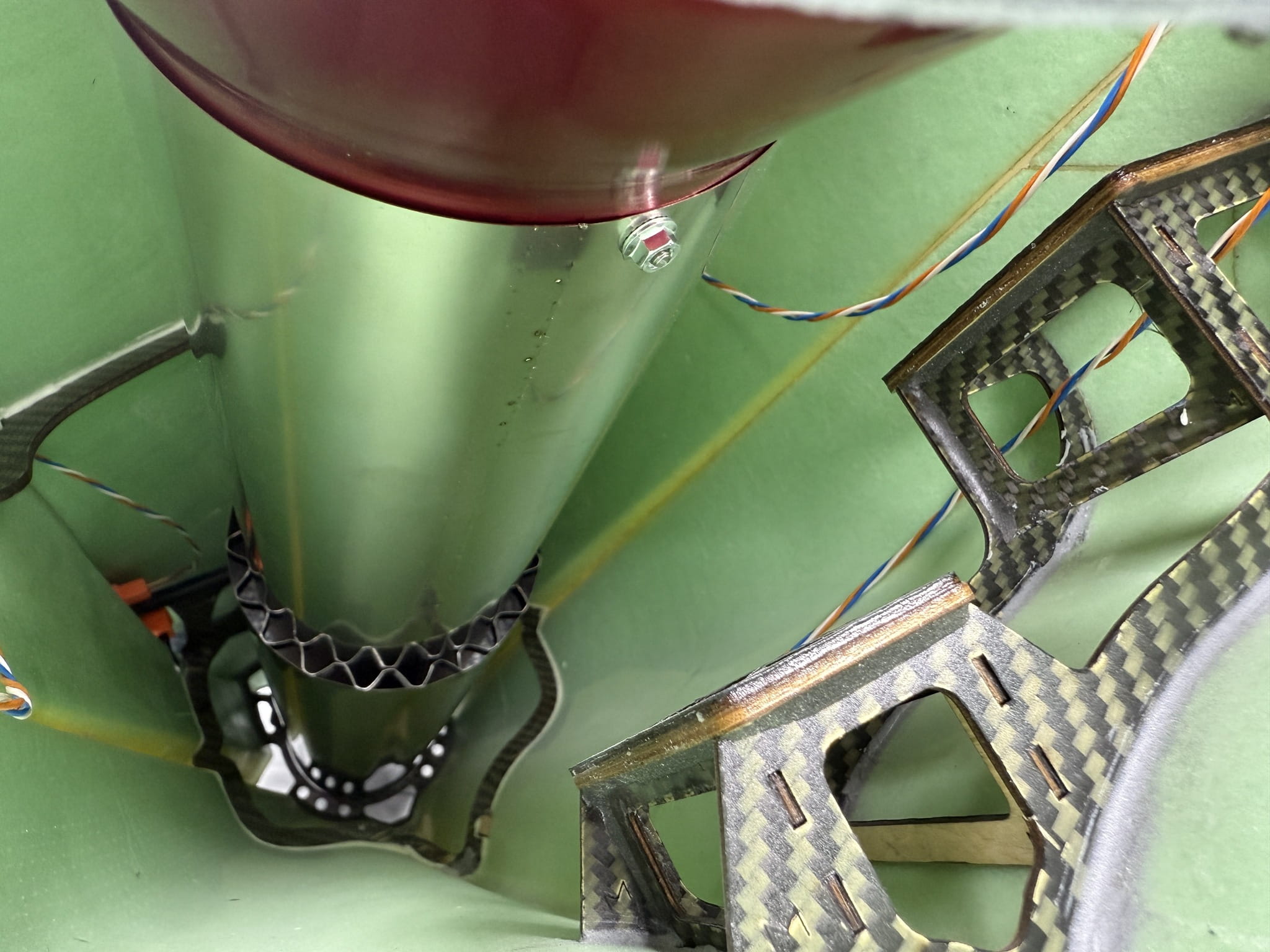

• Jet pipe

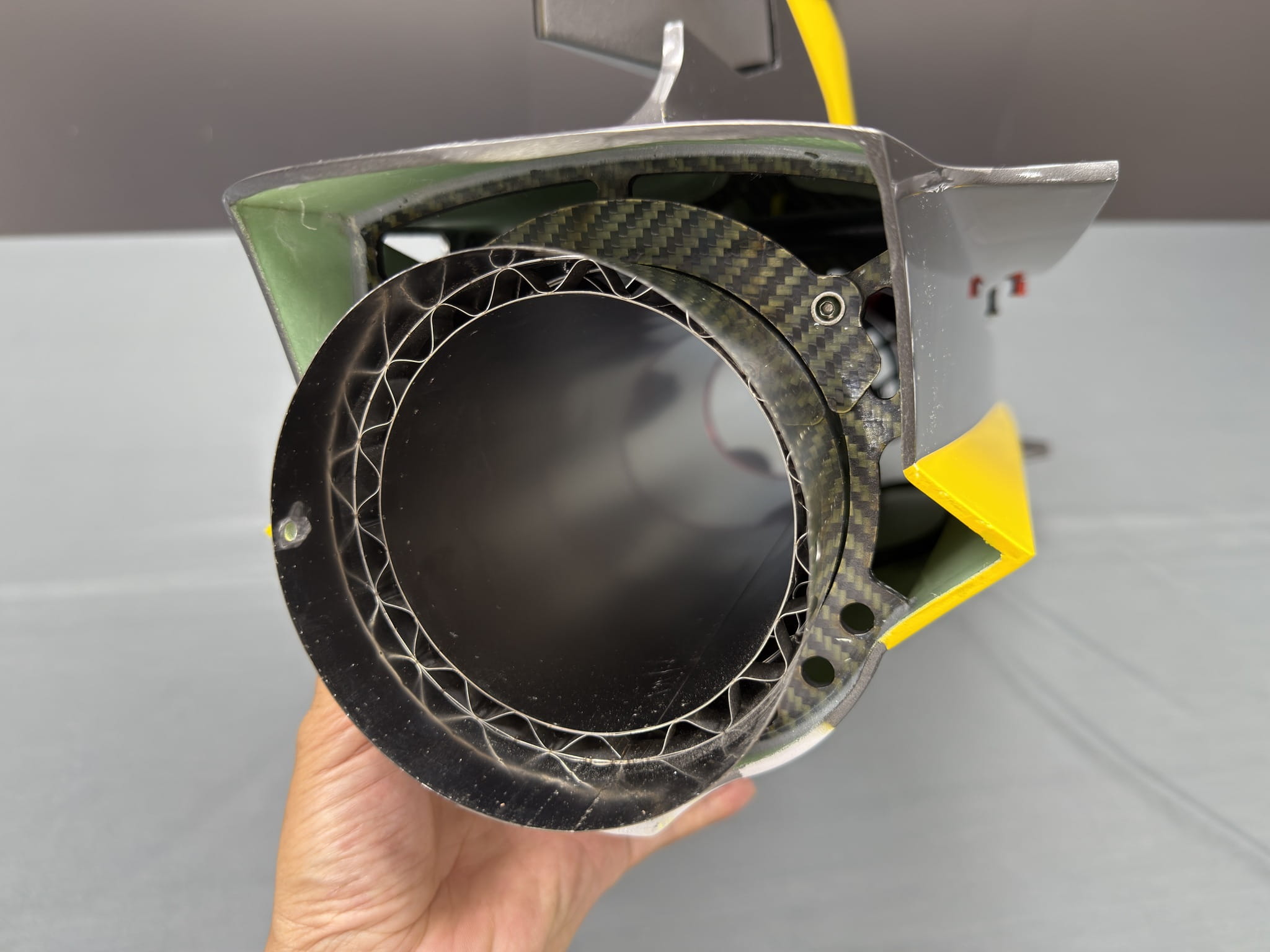

• Vector (including vector putter)

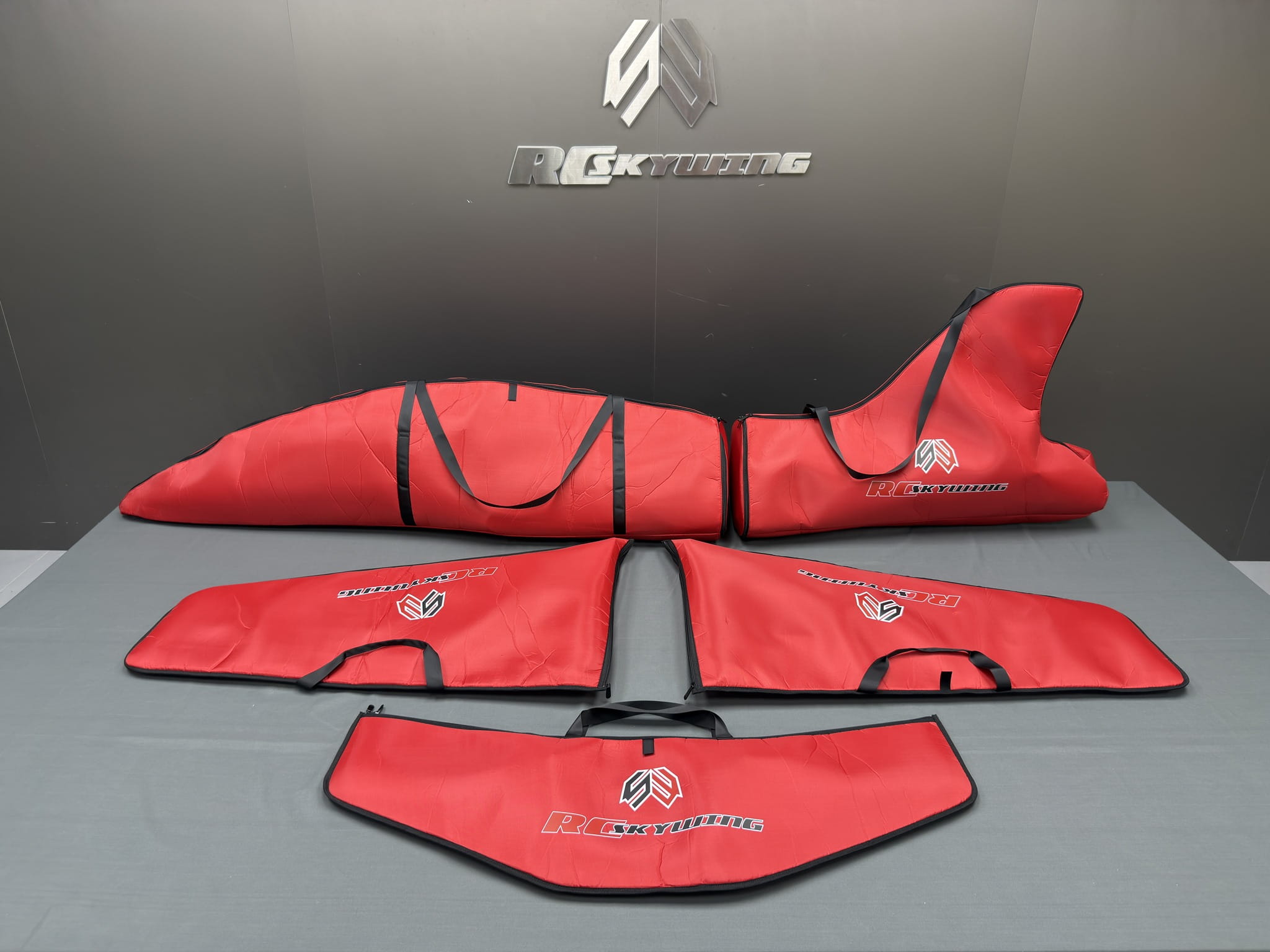

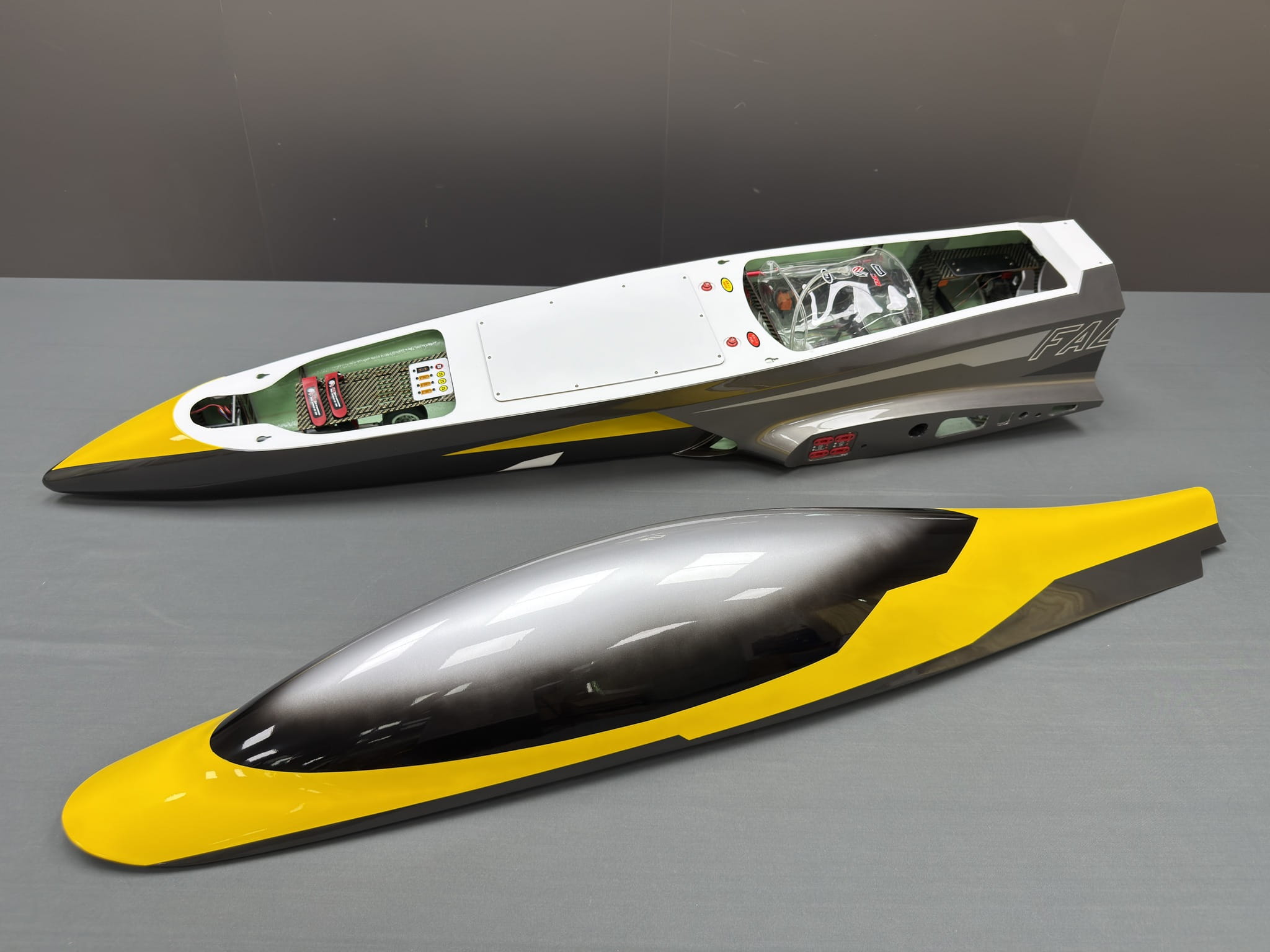

• Covers for the fuselage, wings and horizontal stabilizers

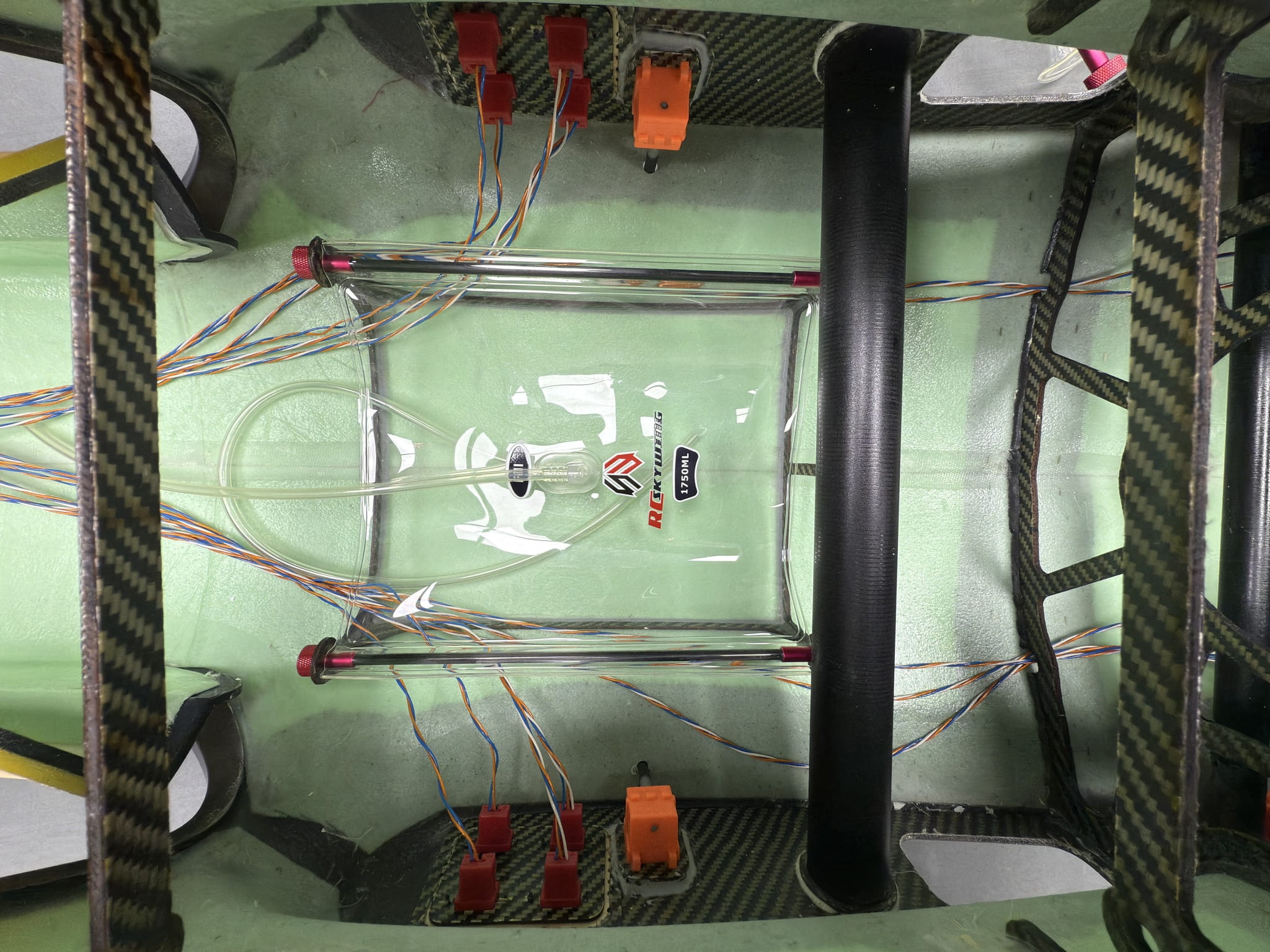

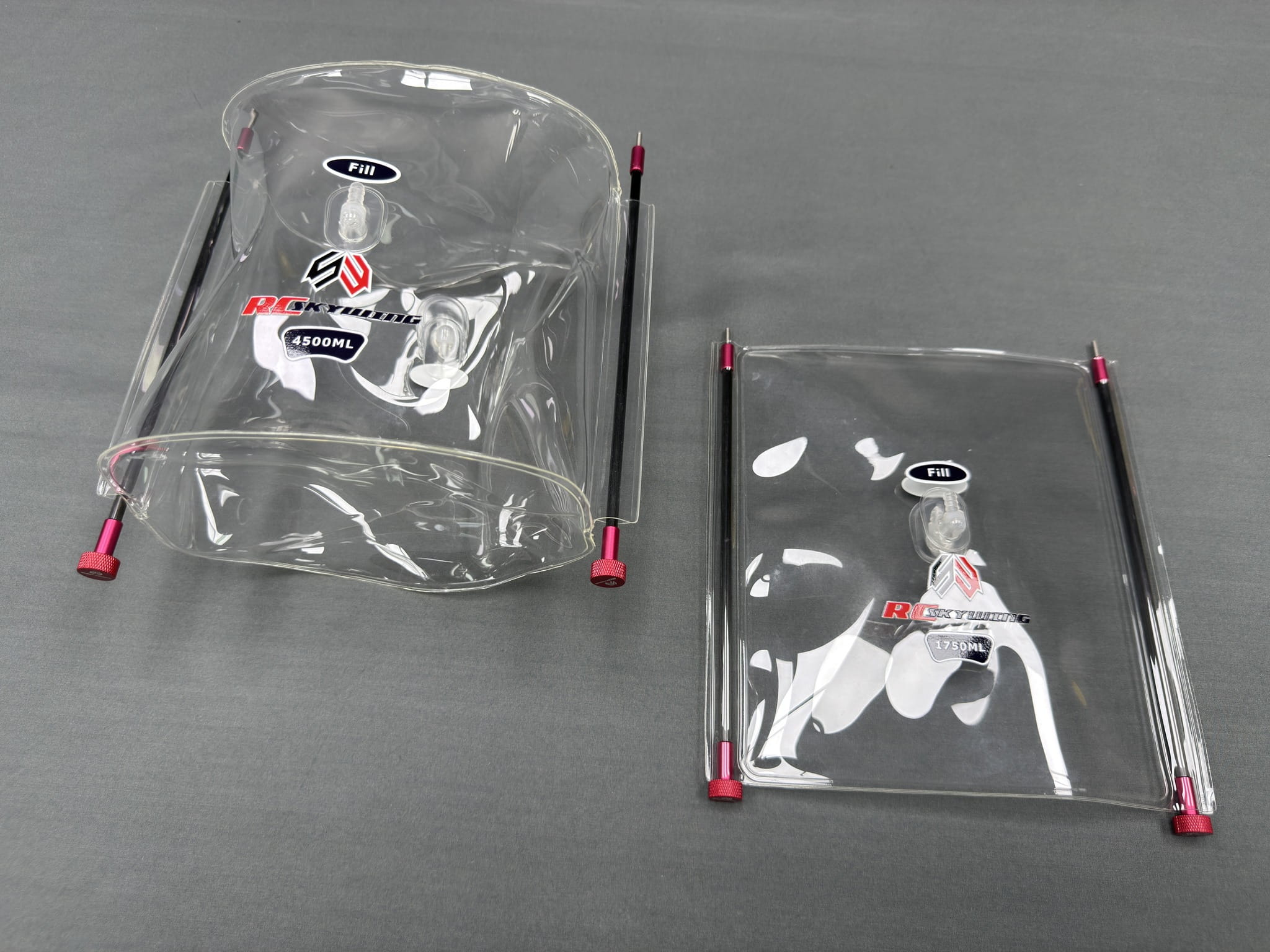

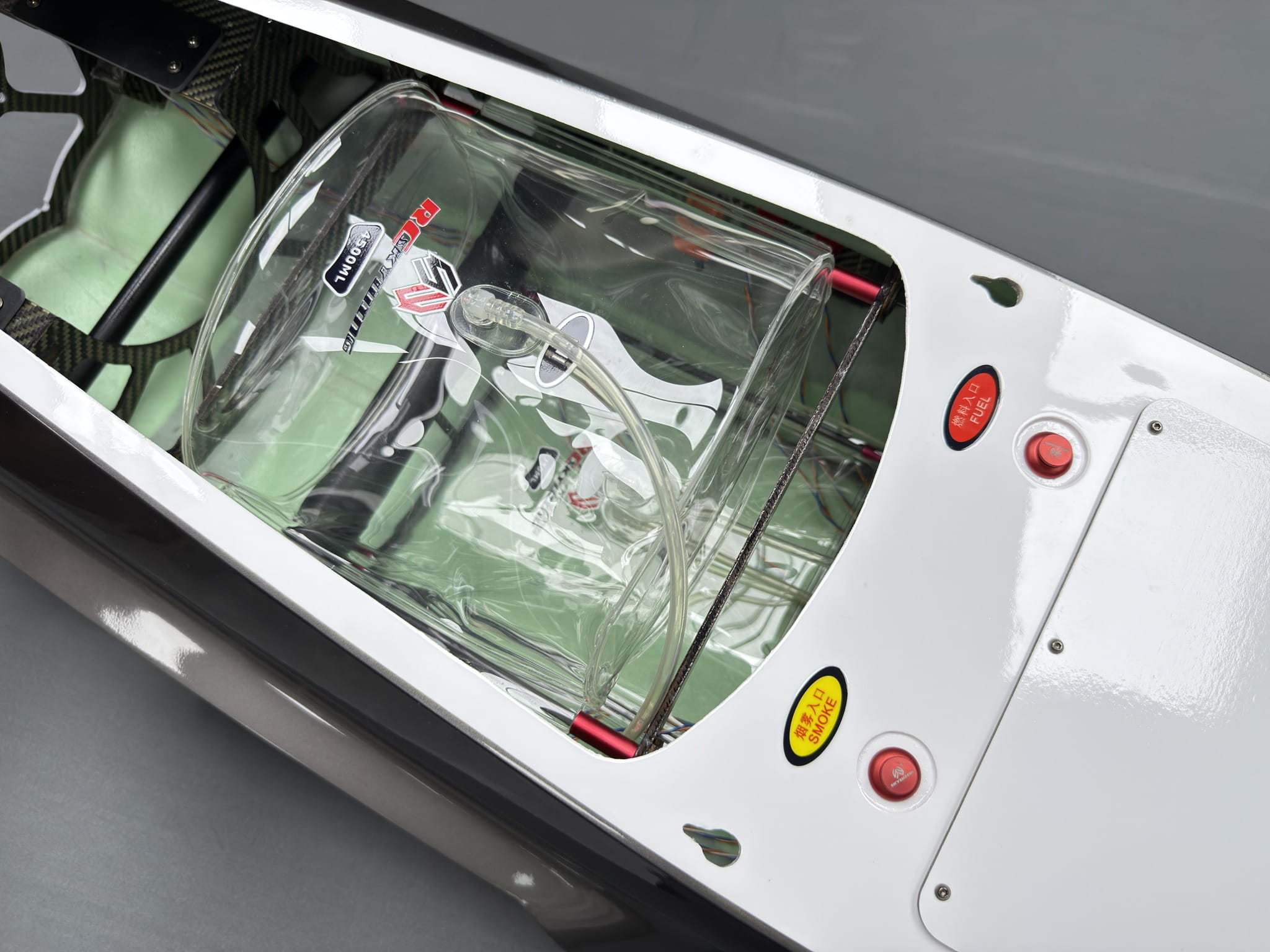

• Fuel tank (3500 ml)
• Smoke tank (1000 ml)

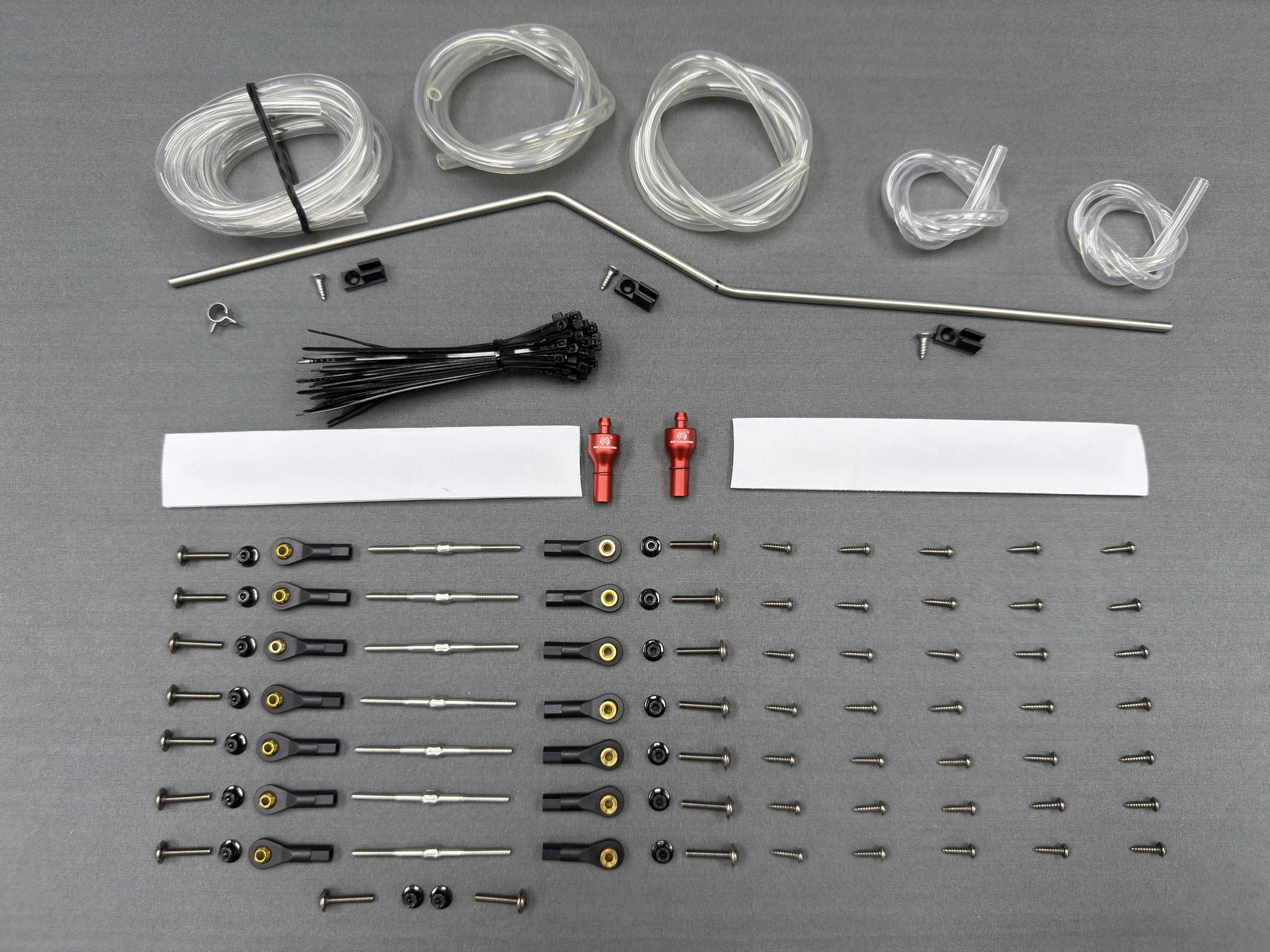

• Equipment for the fuel system (fuel lines, 2 x fuel filler, 2 x air vent)
• High-quality magic ties for battery installation
• Pushrod

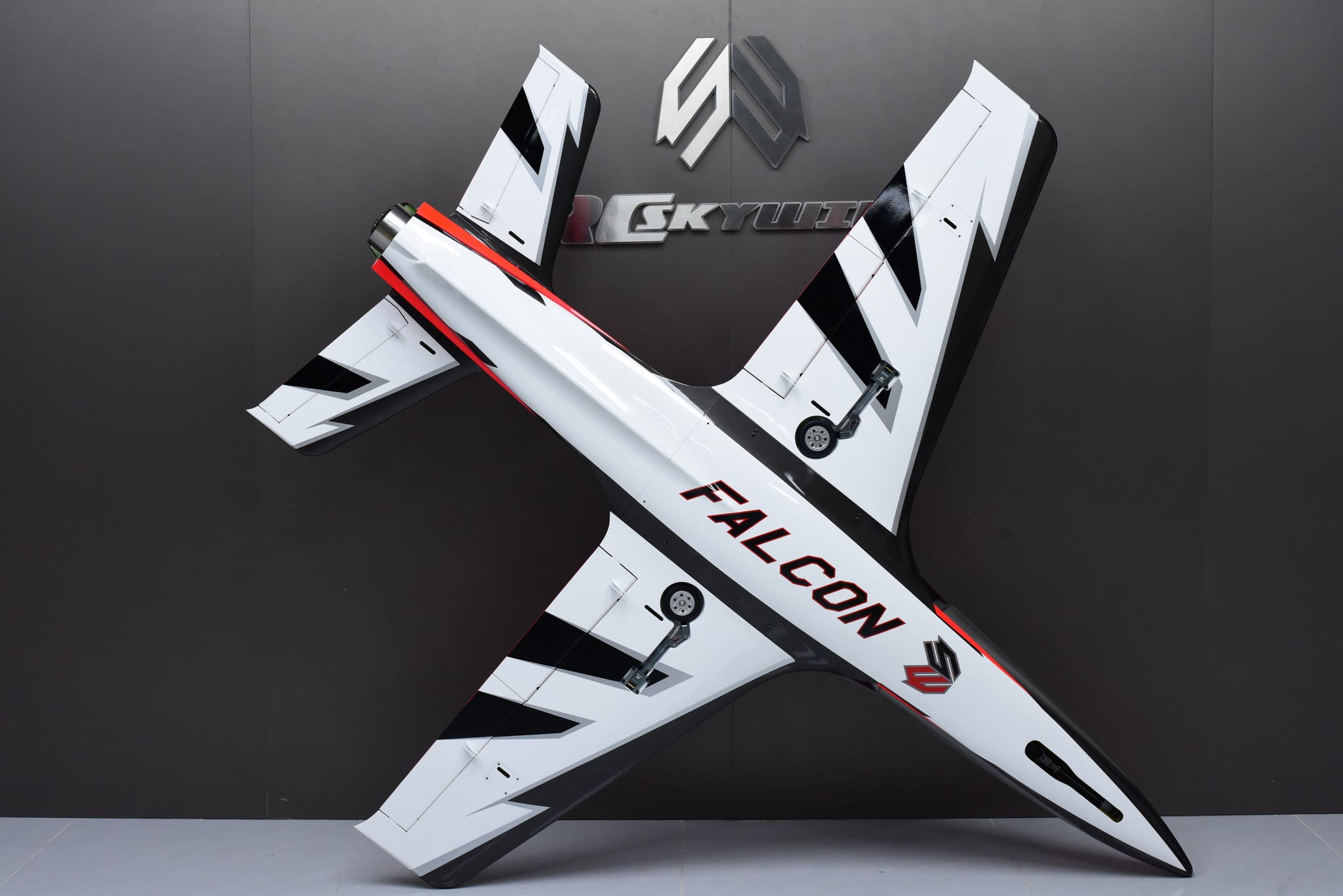

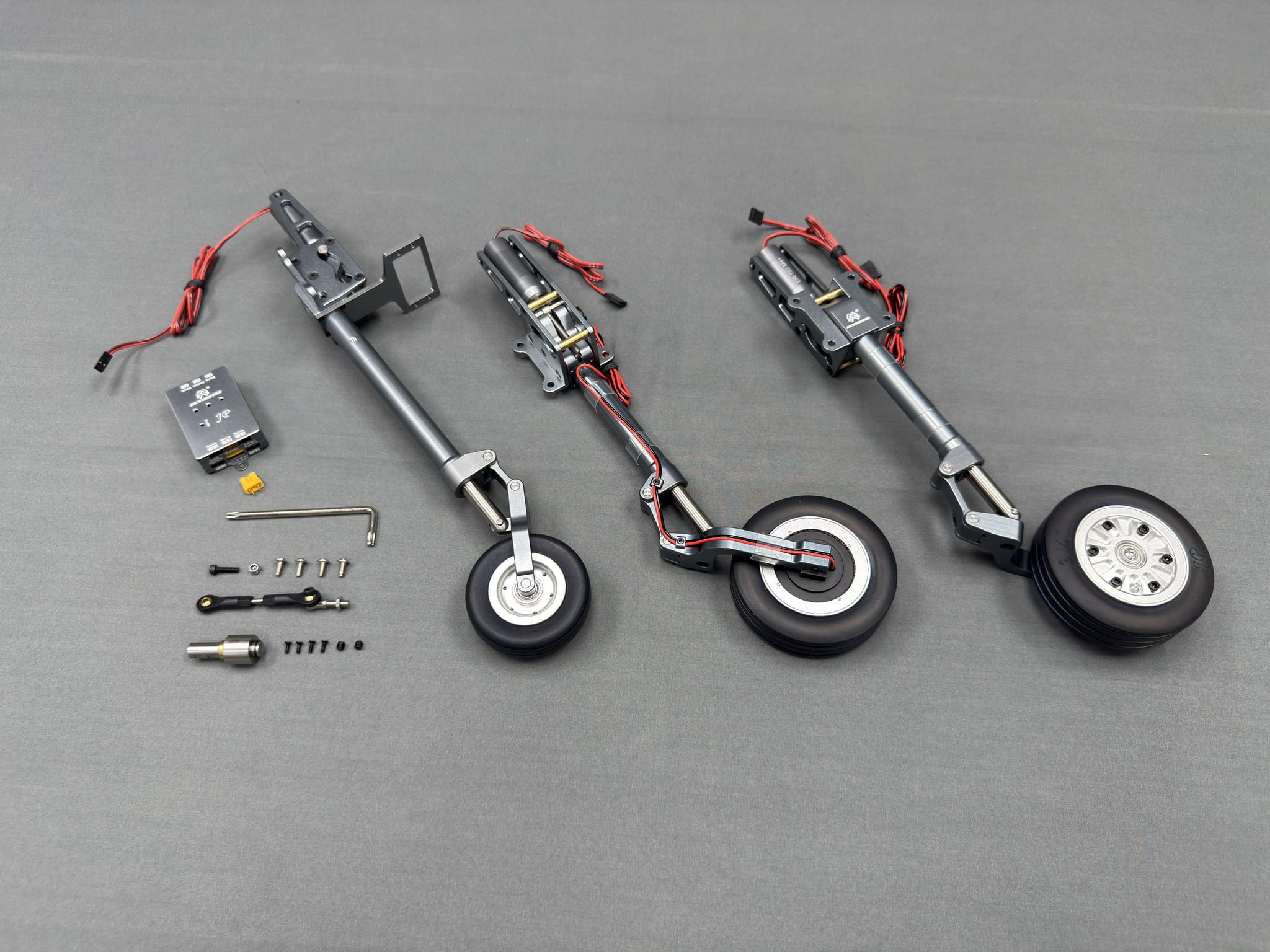

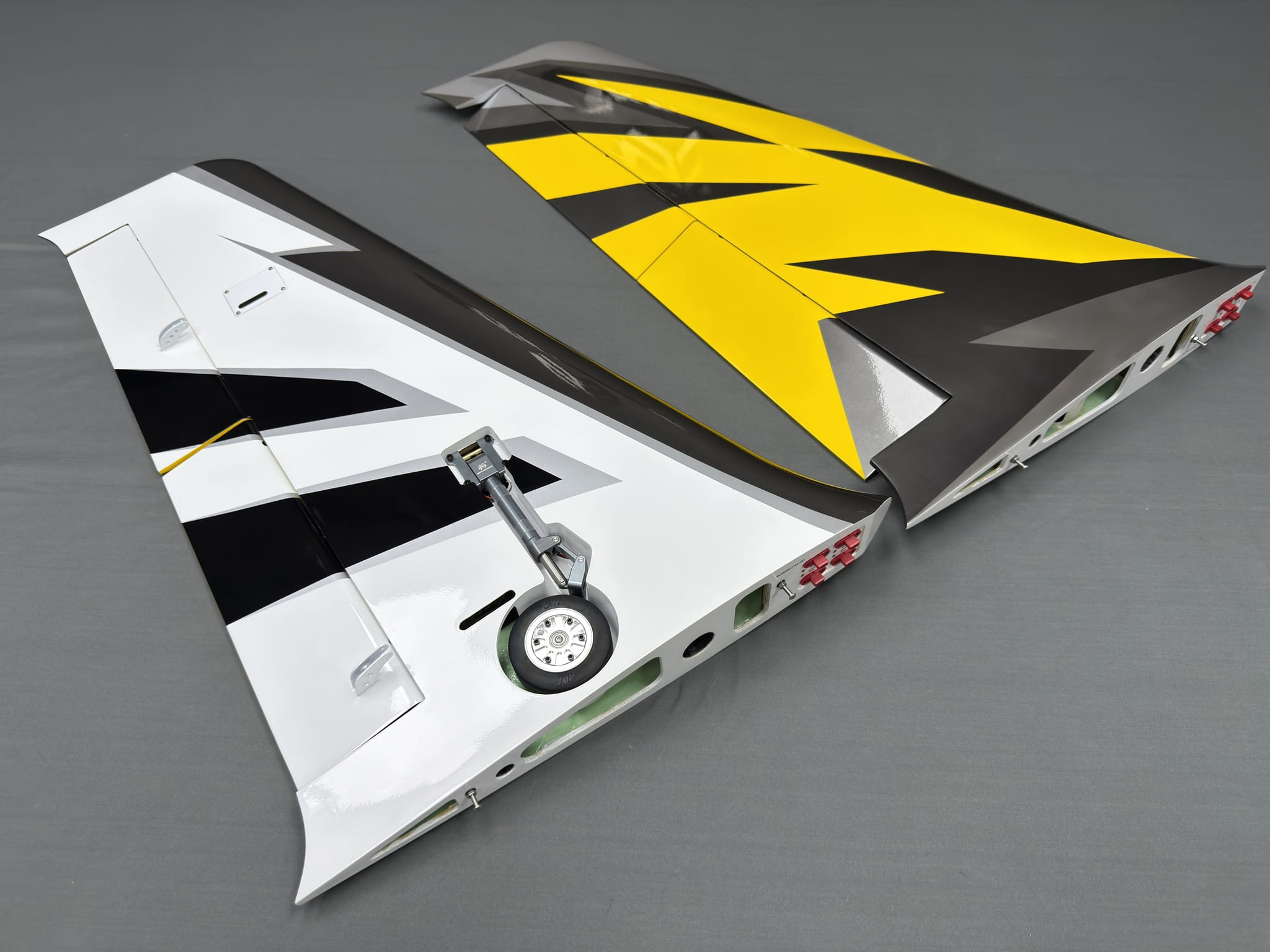

• Retractable JP landing gear

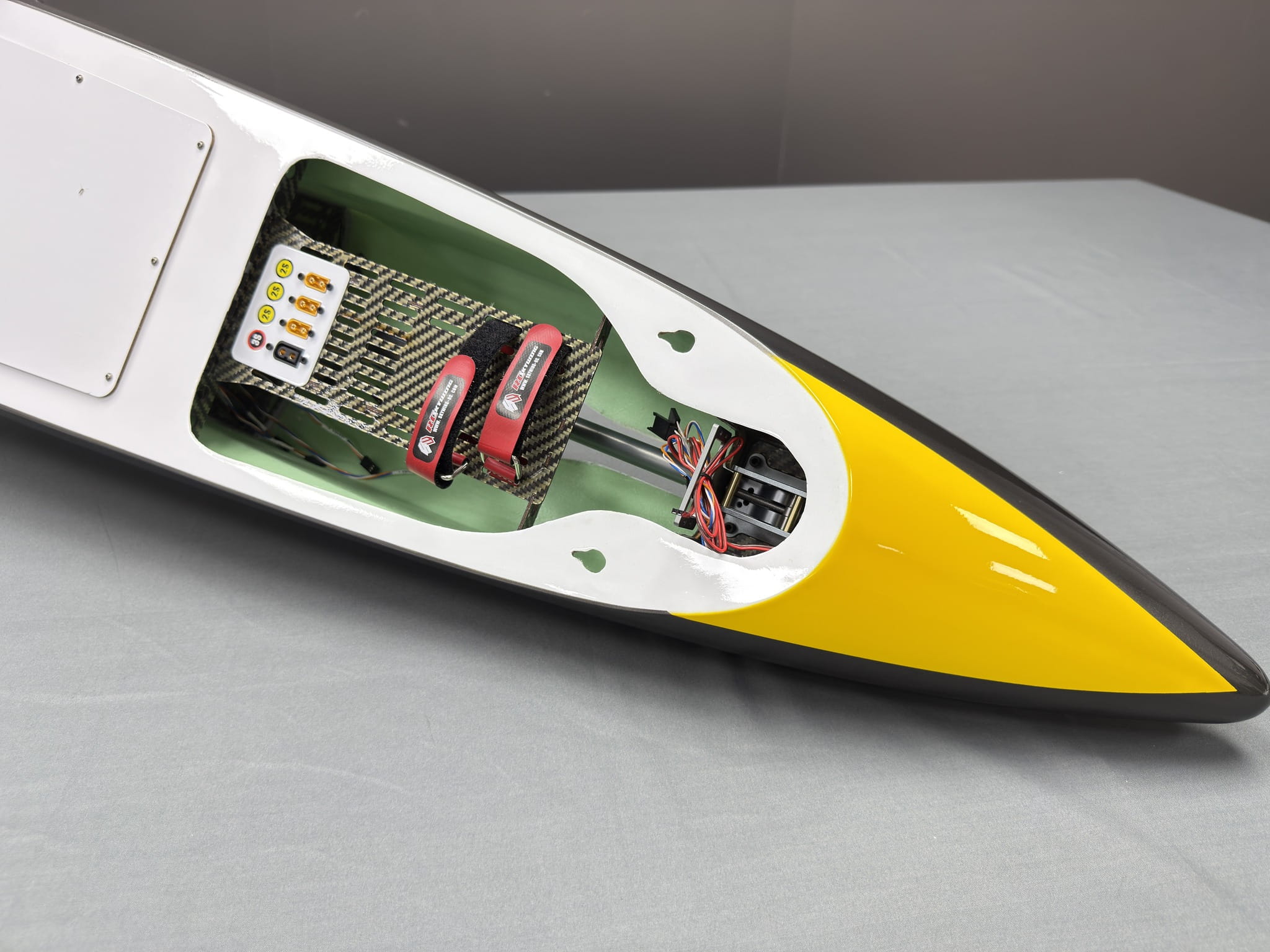

• Power connectors (3 x XT60E yellow, 1 x XT60E black)

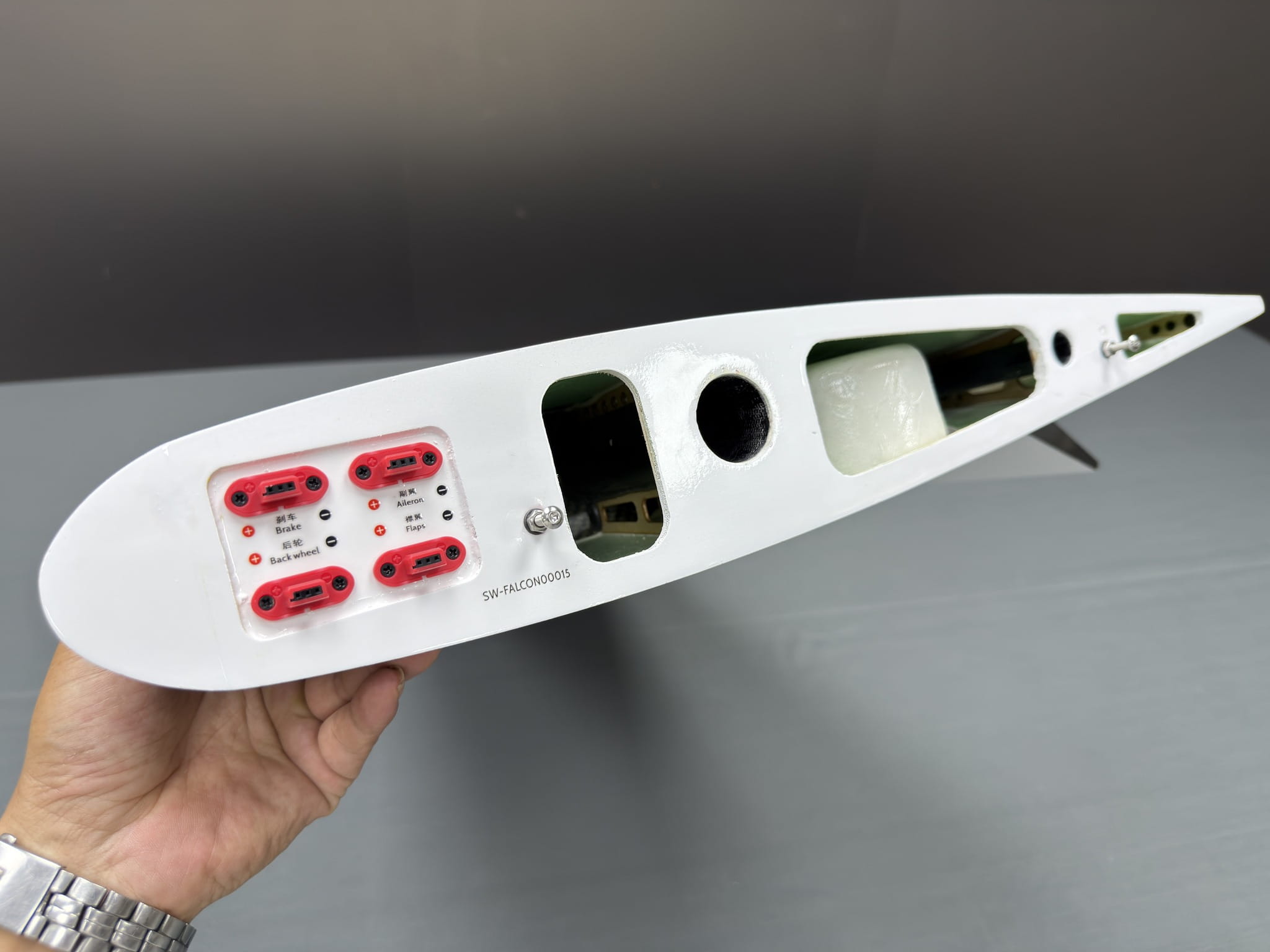

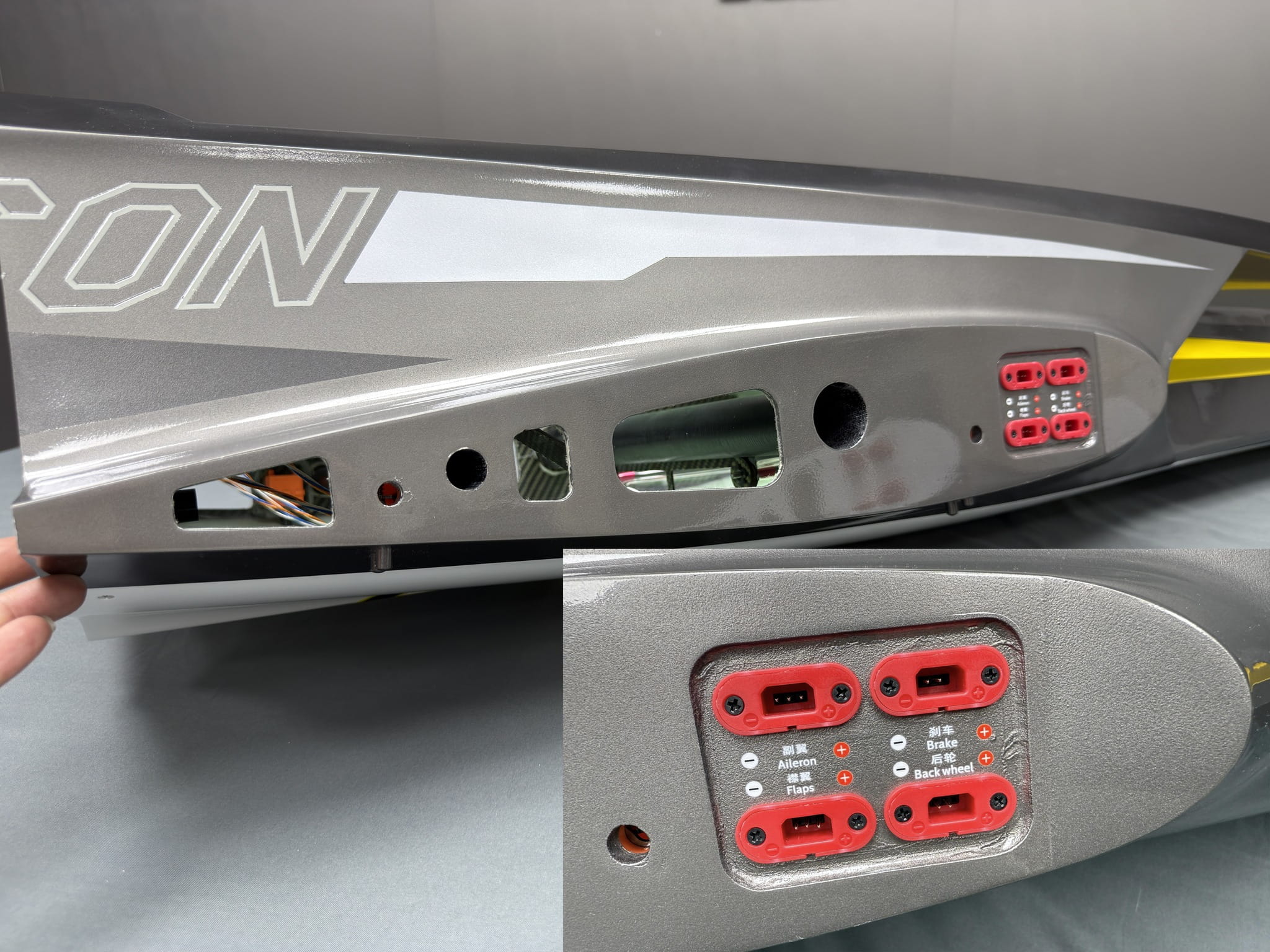

• Mounted wing connectors

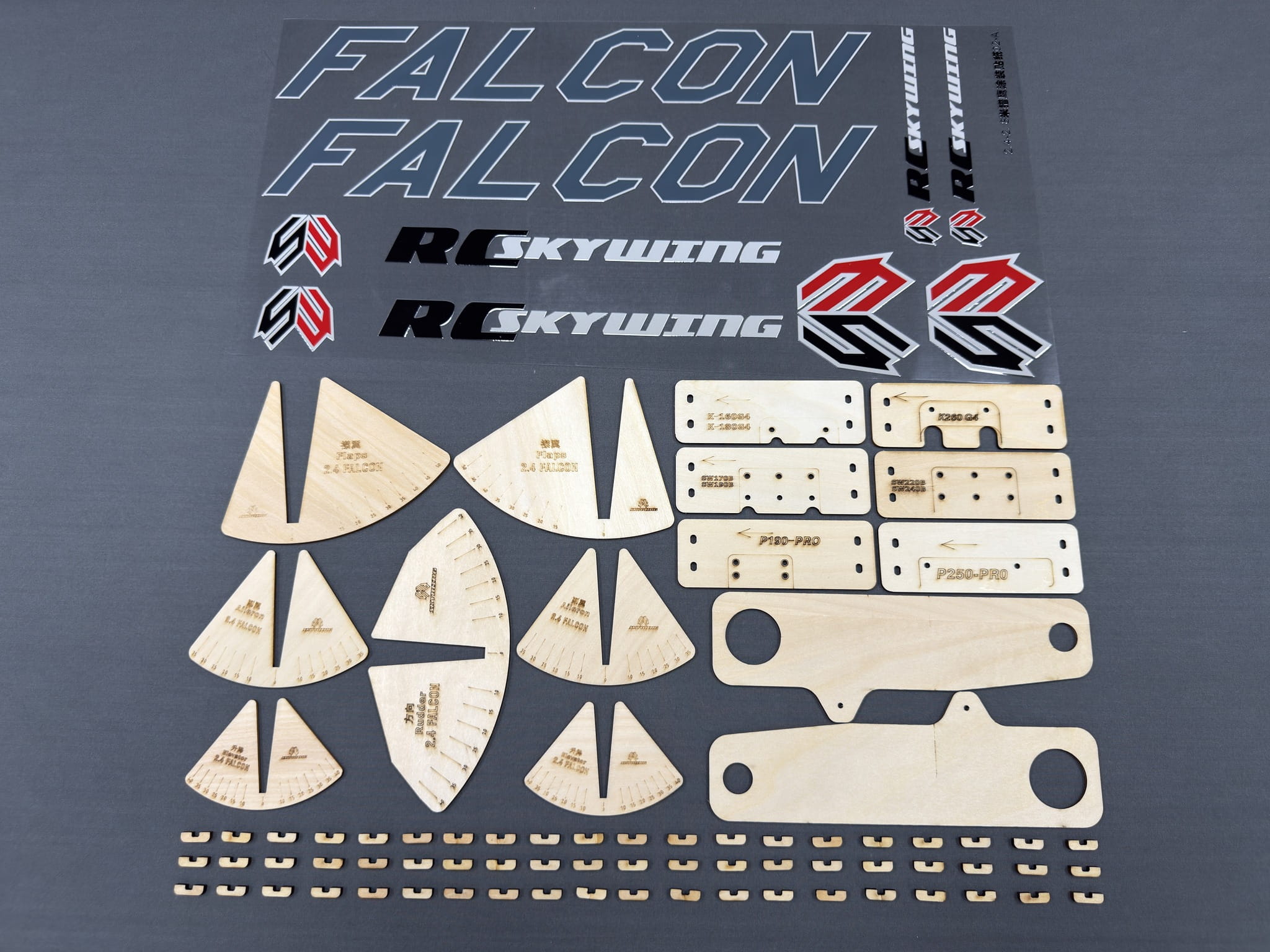

• Marking board for measuring each control surface

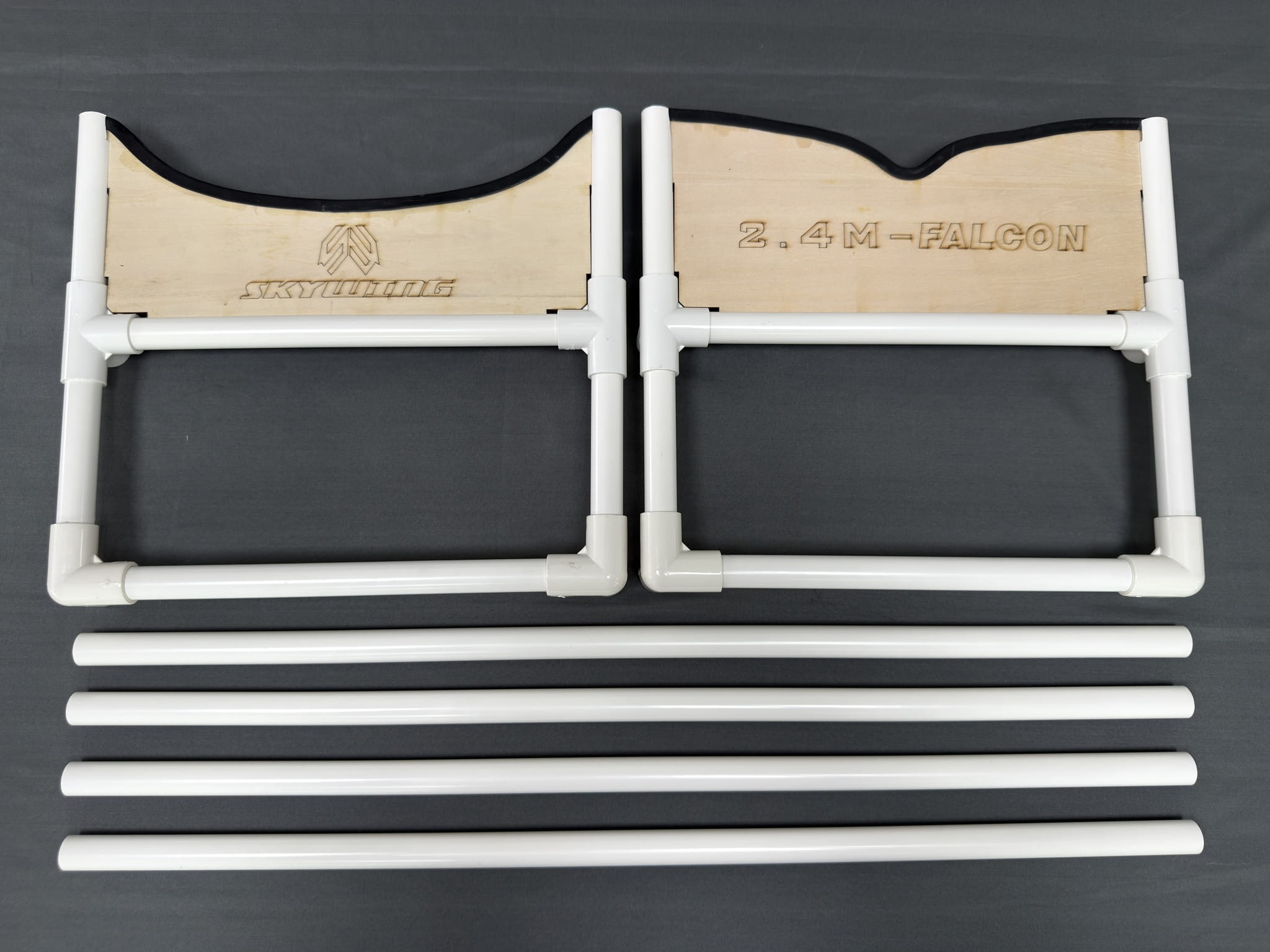

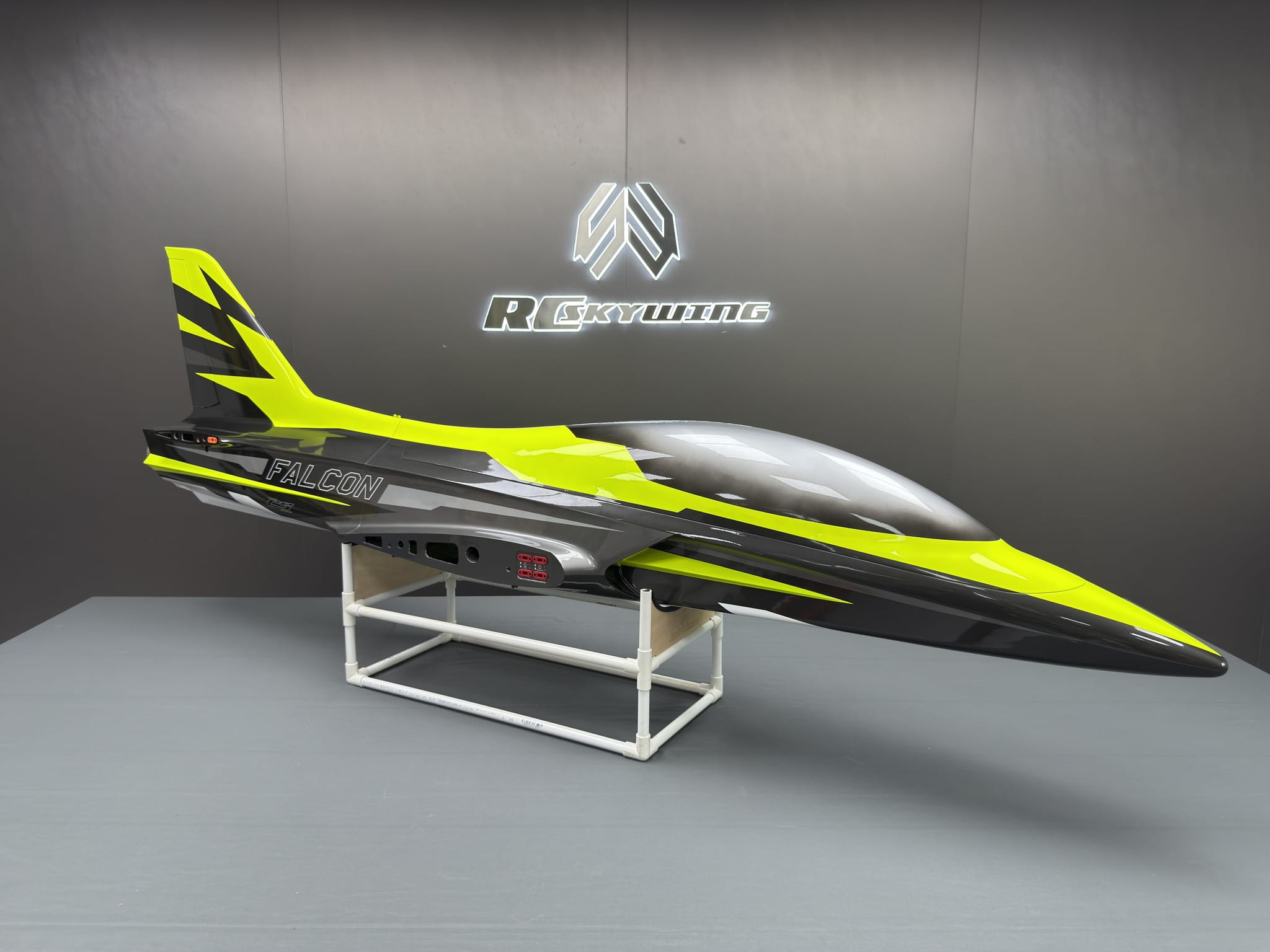

• Aircraft mounting stand

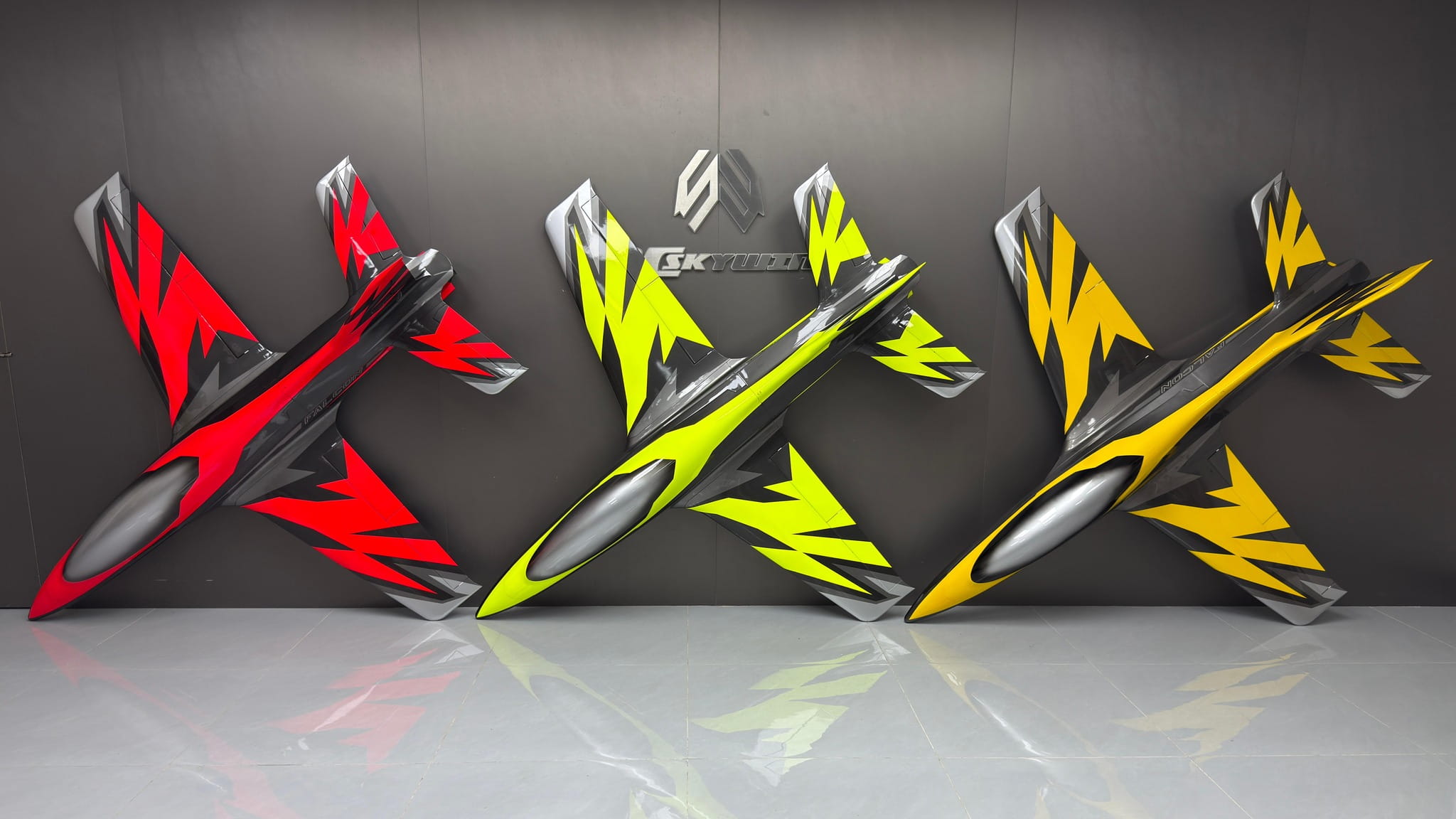

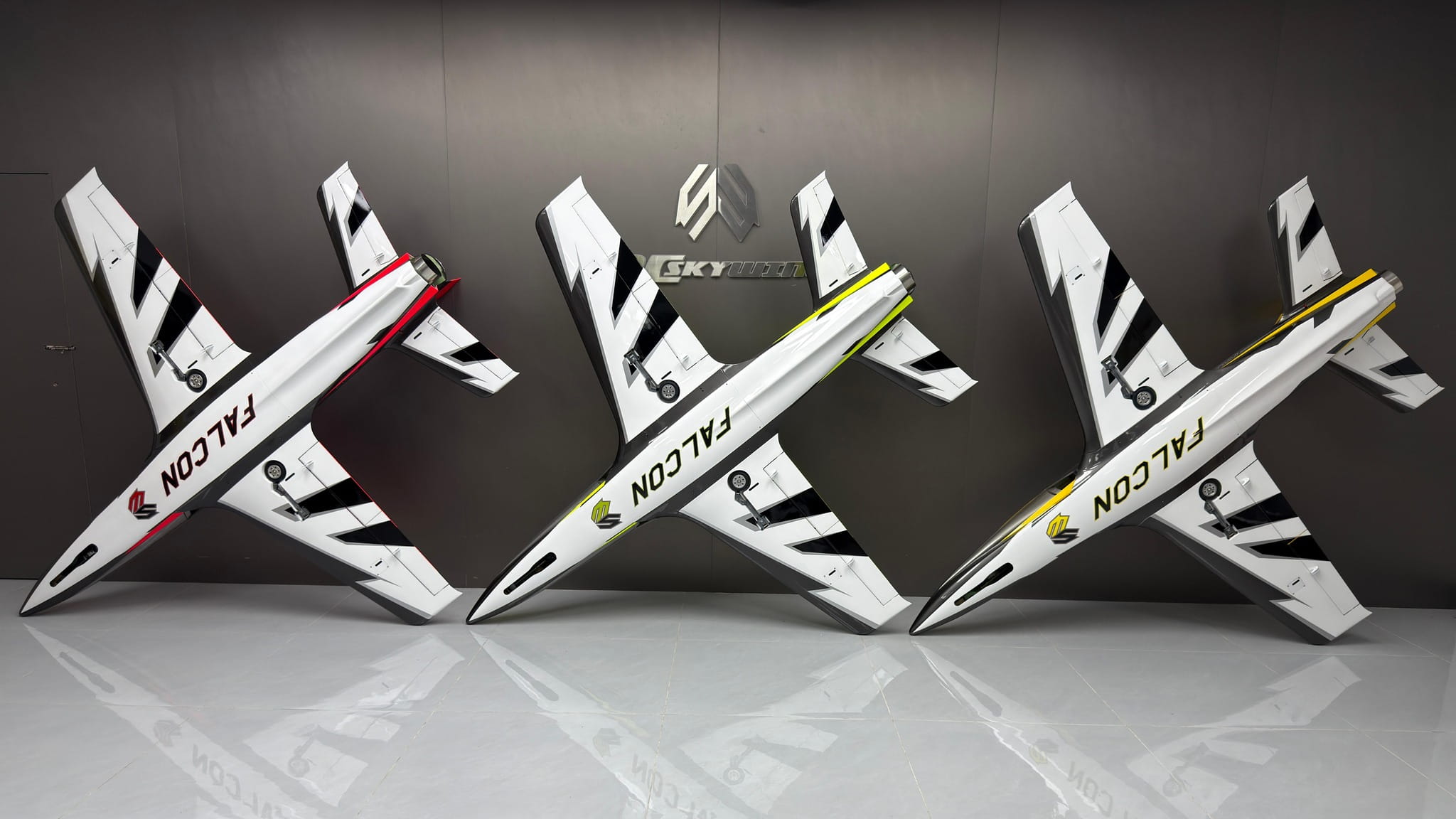

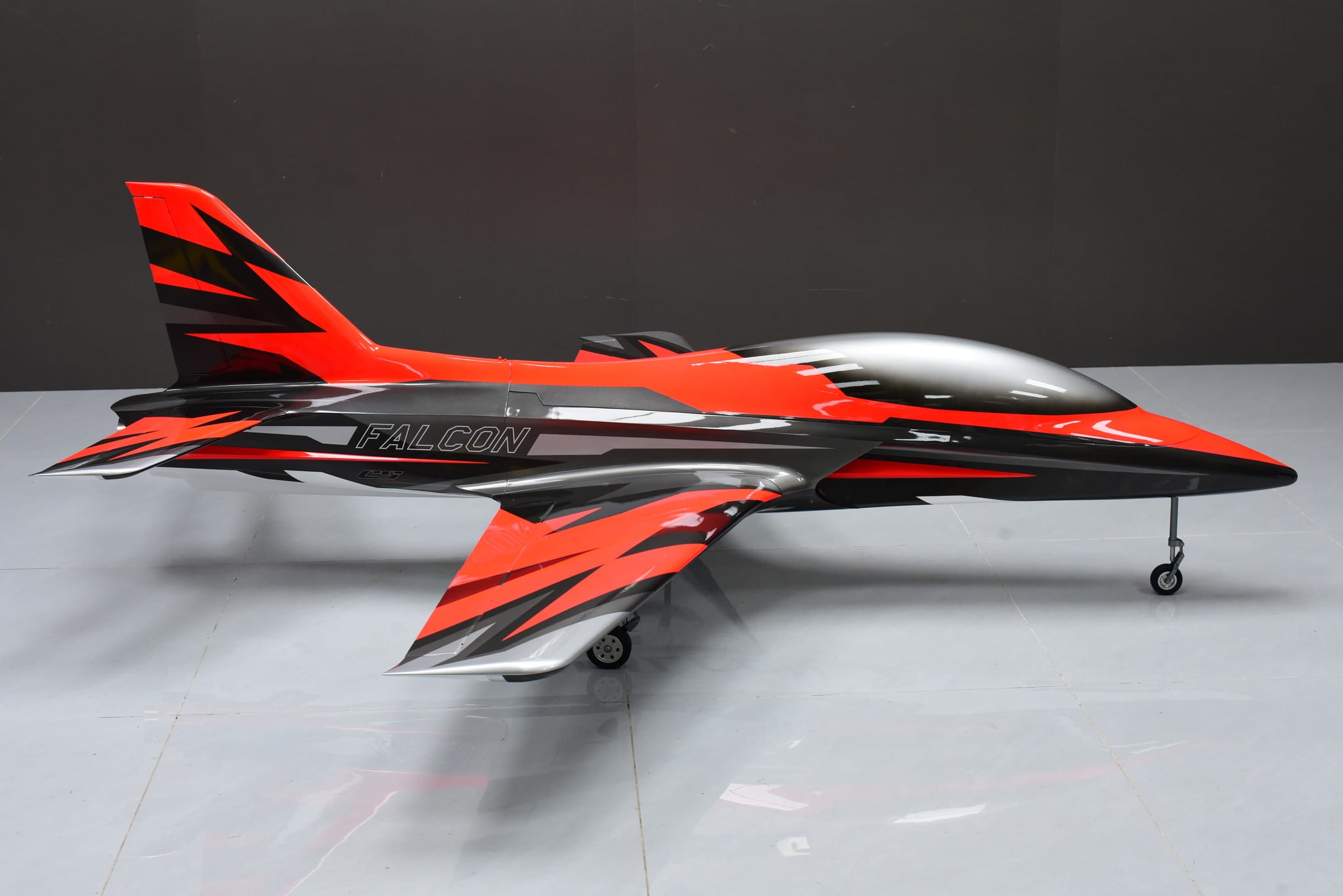

• Available in 3 color variants:
• Gray – Red

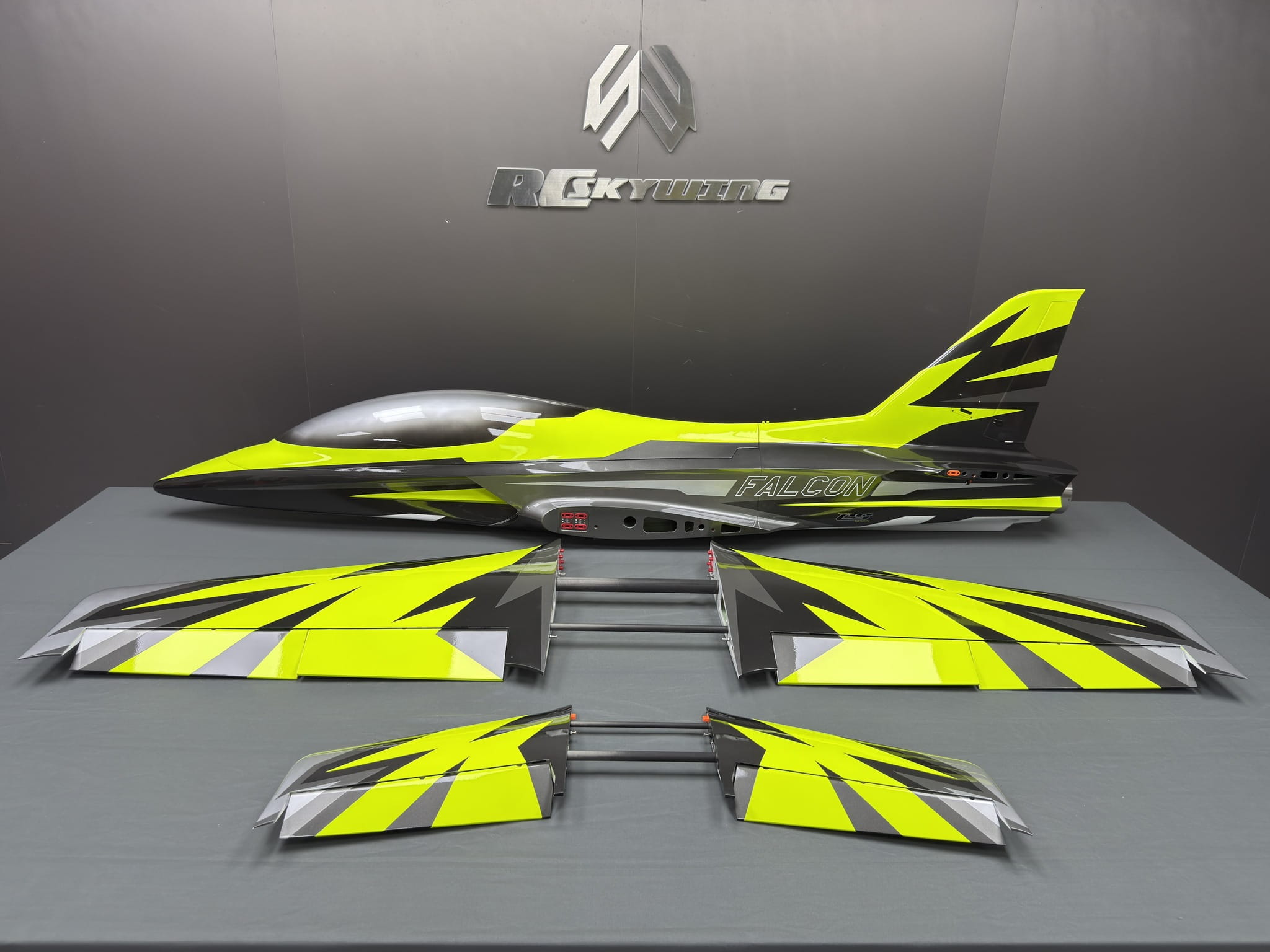

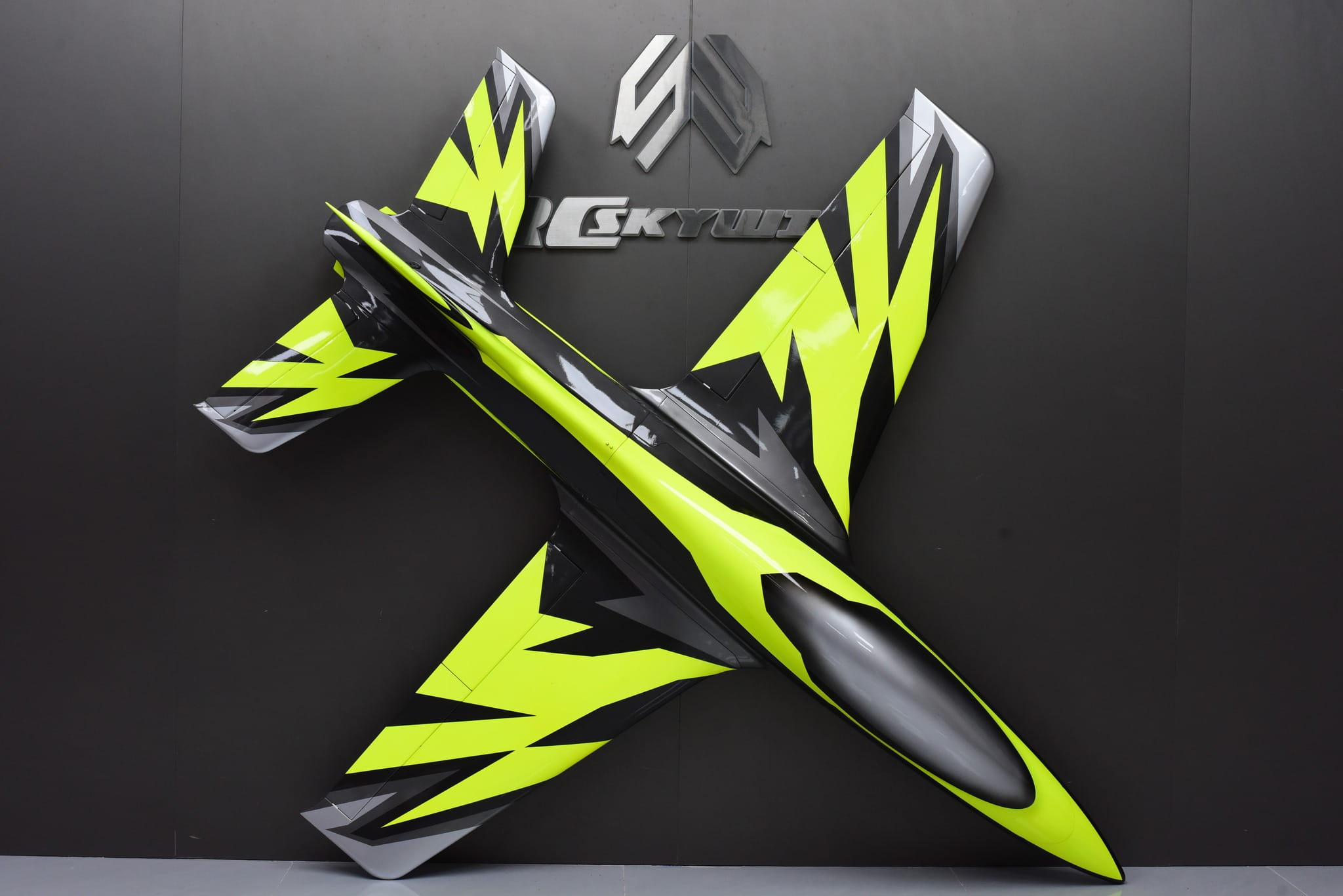

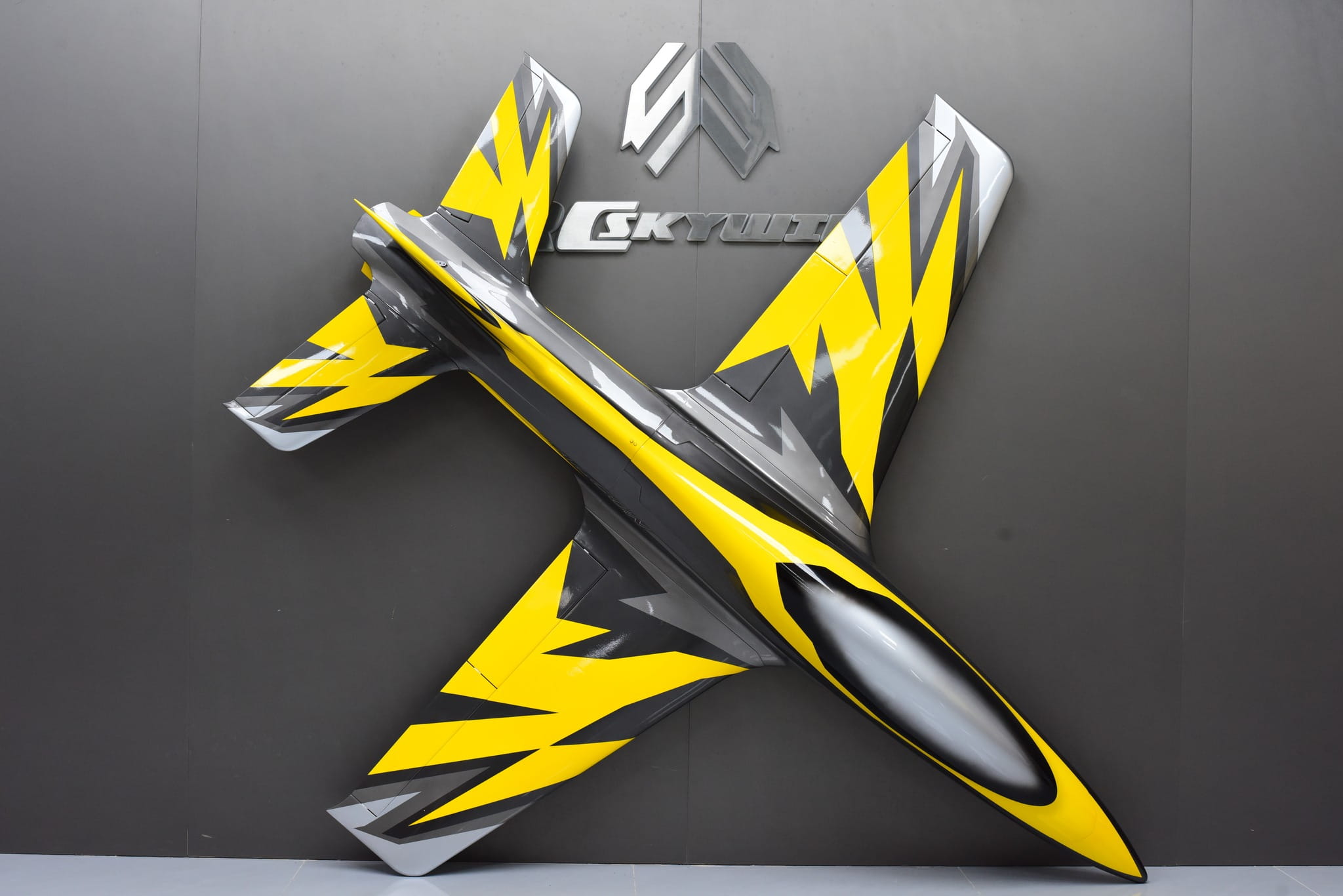

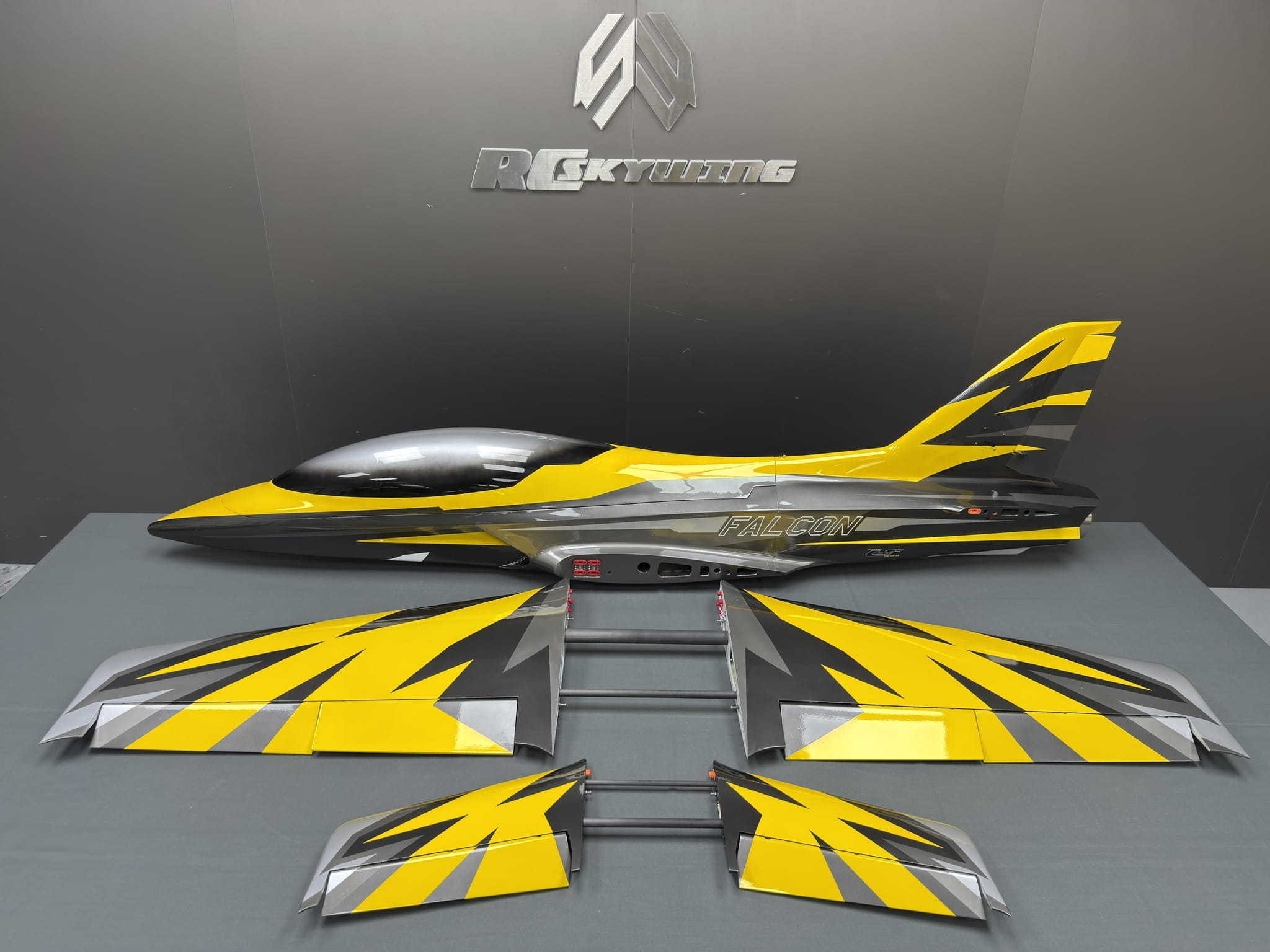

• Gray – Yellow
• Gray – Green

Note: This product is shipped in two separate packages. The package no 1 has dimensions 173 x 51 x 49 cm (weight – 15,2 kg), the package no 2 has dimensions 108 x 78 x 56 cm (weight – 17,8 kg).

What you need to complete the set:

Servos:

• Flaps – 2 pieces (dimensions 40x20 mm with a minimum pull of 35 kg)
• Ailerons – 2 pieces (dimensions 40x20 with a minimum pull of 35 kg)
• Elevators – 2 pieces (dimensions 40x20 with a minimum pull of 35 kg)
• Rudder – 1 piece (dimensions 40x20 with a minimum pull of 35 kg)
• Vector – 2 pieces (dimensions 40x20 with a minimum pull of 35 kg)
• Front steering wheel – 1 piece (dimensions 40x20 with a minimum pull of 20 kg)

Servo levers:

• Flaps – 1.5” M2 - 2 pieces
• Ailerons – 1.25” M2 – 2 pieces
• Elevators – 1.25” M2 – 2 pieces
• Rudder – 1.25” M2 – 1 piece
• Vector – 1.5” M2 – 2 pieces
• Front steering wheel – 1.0” M2 – 1 piece
