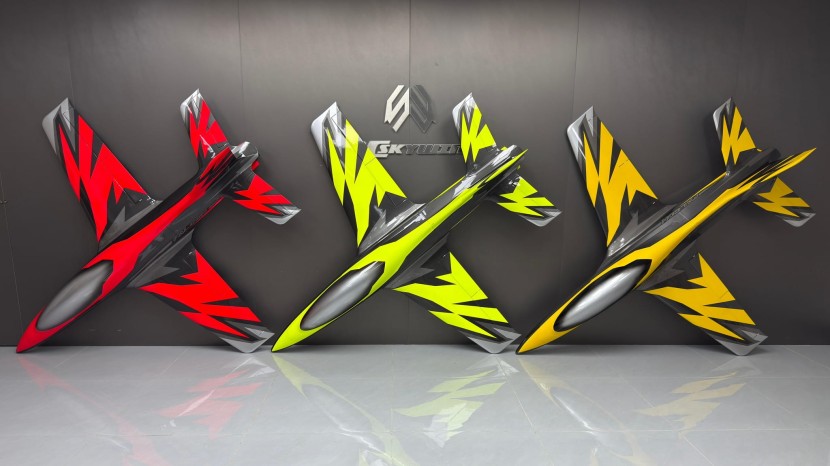

Skywing - Falcon 82"

Basic information

Wingspan: 80 in / 2032 mm

Length: 82 in / 2080 mm

Weight (without fuel): 23.15 lbs / 10.5 kg

What's in the box:

• High-quality servo cables
• Carbon tubes for wings and horizontal stabilizers
• Jet pipe
• Vector (including vector putter)
• Covers for the fuselage, wings and horizontal stabilizers
• Fuel tank (3500 ml)
• Smoke tank (1000 ml)
• UAT tank (200 ml)
• Equipment for the fuel system (fuel lines, 2 x fuel filler, 2 x air vent)
• High-quality magic ties for battery installation
• Pushrod
• Retractable JP landing gear
• Power connectors (3 x XT60E yellow, 1 x XT60E black)
• Mounted wing connectors
• Marking board for measuring each control surface
• Aircraft mounting stand
• Available in 8 color variants:
  • White – prepared for painting
  • Red – White – Black
  • Green – White – Black
  • Orange – White – Blue
  • Yellow – Red – Black
  • Gray – Red
  • Gray – Yellow
  • Gray – Green

Note: This product is shipped in two separate packages. The package with the fuselage has dimensions 151 x 36 x 40 cm (weight – 10.2 kg), the package with the wings has dimensions 100 x 37 x 67 cm (weight – 10.9 kg).

What you need to complete the set:

Turbine for sport flying: 120 – 140 N

Turbine for 3D flying: 160 – 190 N

Servos:

• Flaps – 2 pieces (standard with a minimum pull of 30 kg)
• Ailerons – 2 pieces (dimensions 35x15x30 with a minimum pull of 15 kg)
• Elevators – 2 pieces (dimensions 35x15x30 with a minimum pull of 15 kg)
• Rudder – 1 piece (dimensions 35x15x30 with a minimum pull of 15 kg)
• Vector – 2 pieces (dimensions 35x15x30 with a minimum pull of 15 kg)
• Front steering wheel – 1 piece (dimensions 35x15x30 with a minimum pull of 9 kg)

Servo levers:

• Flaps – 1.25” M3 - 2 pieces
• Ailerons – 1.0” M3 – 2 pieces
• Elevators – 1.0” M3 – 2 pieces
• Rudder – 1.25” M3 – 1 piece
• Vector – 1.5” M3 – 2 pieces
• Front steering wheel – 1.0” M3 – 1 piece
