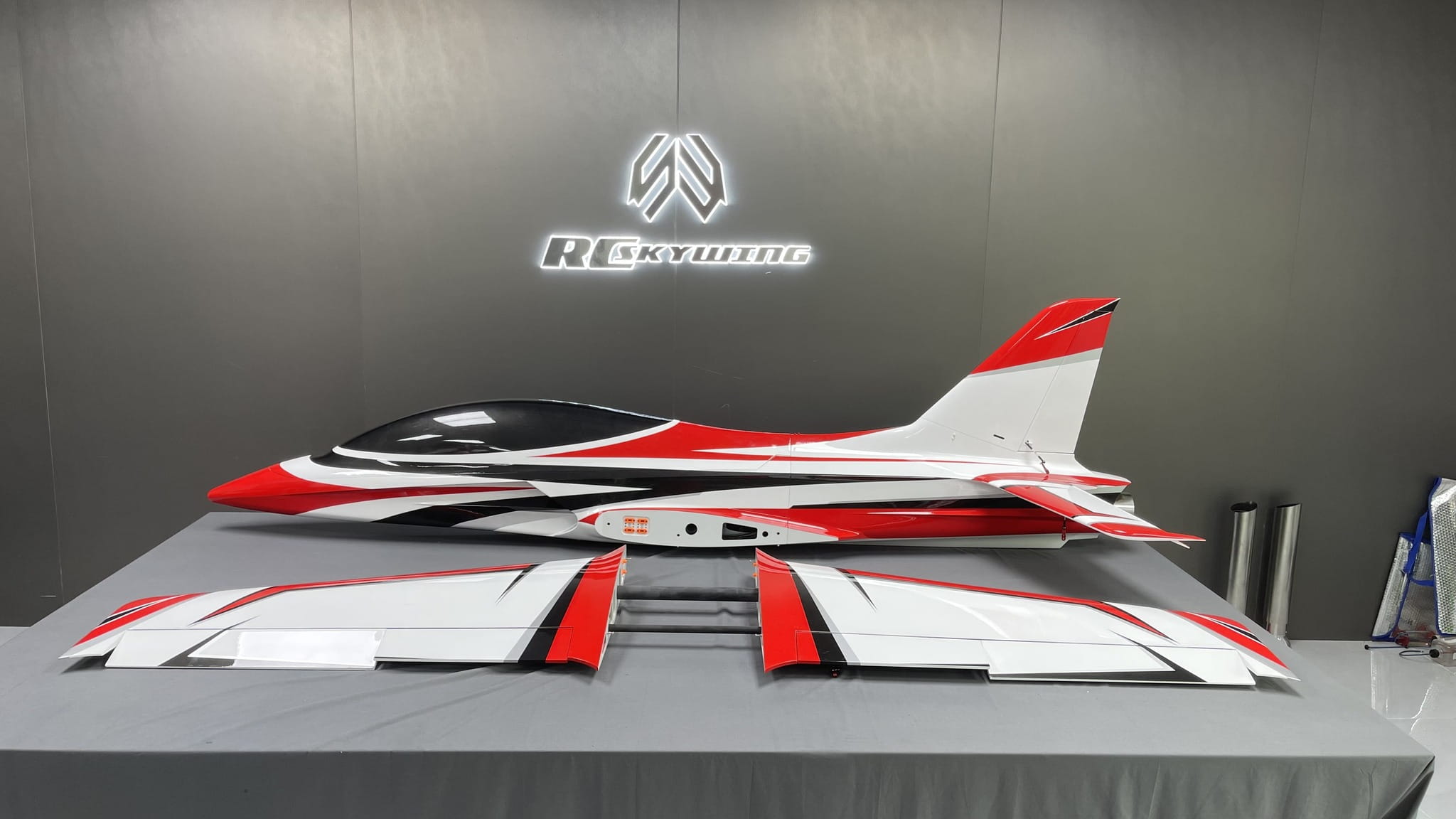

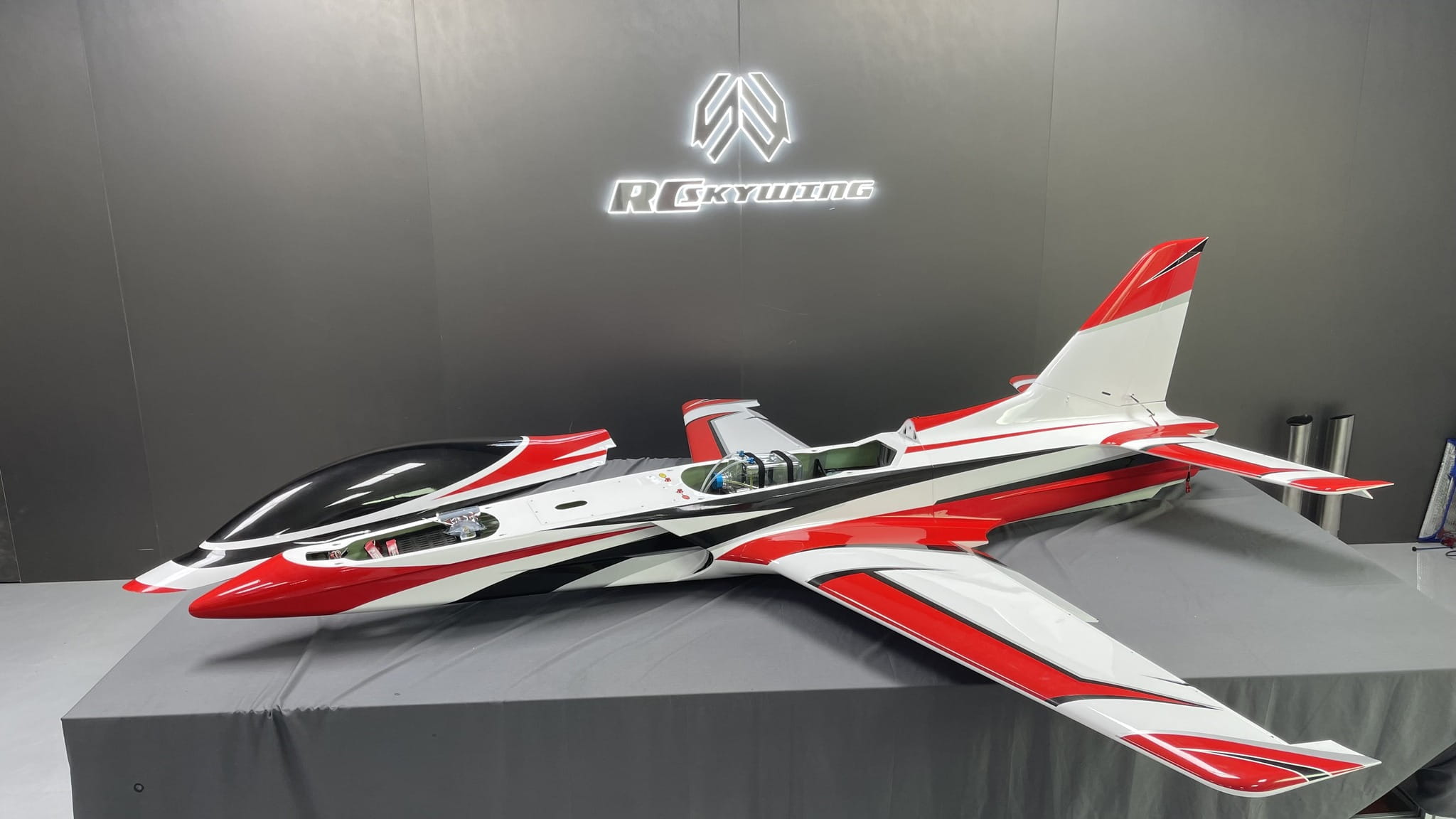

Skywing - Falcon 110"

Basic information

Wingspan: 104,7 in / 2660 mm

Length: 113 in / 2868 mm

Weight (without fuel): 20 – 22 kg

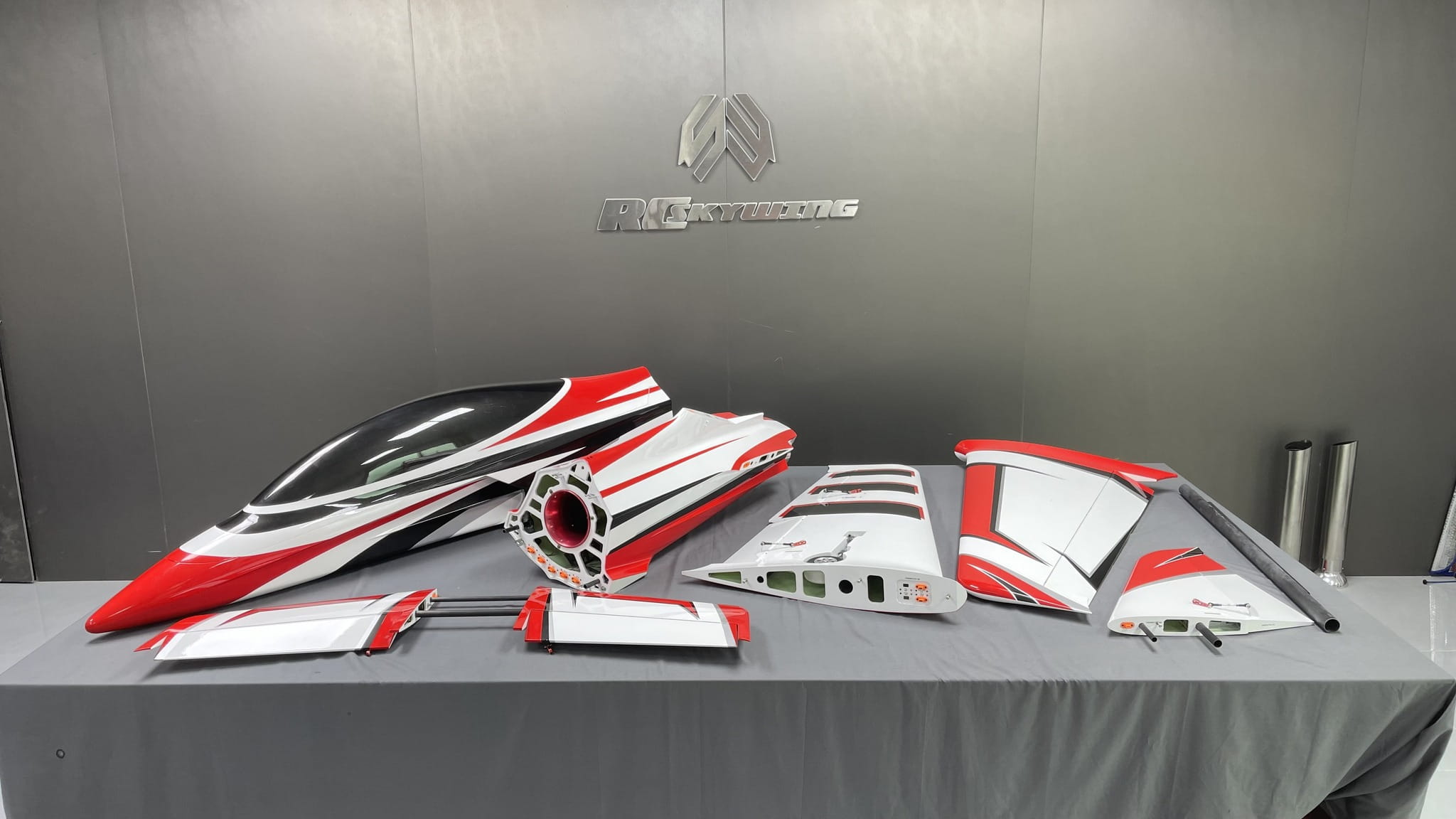

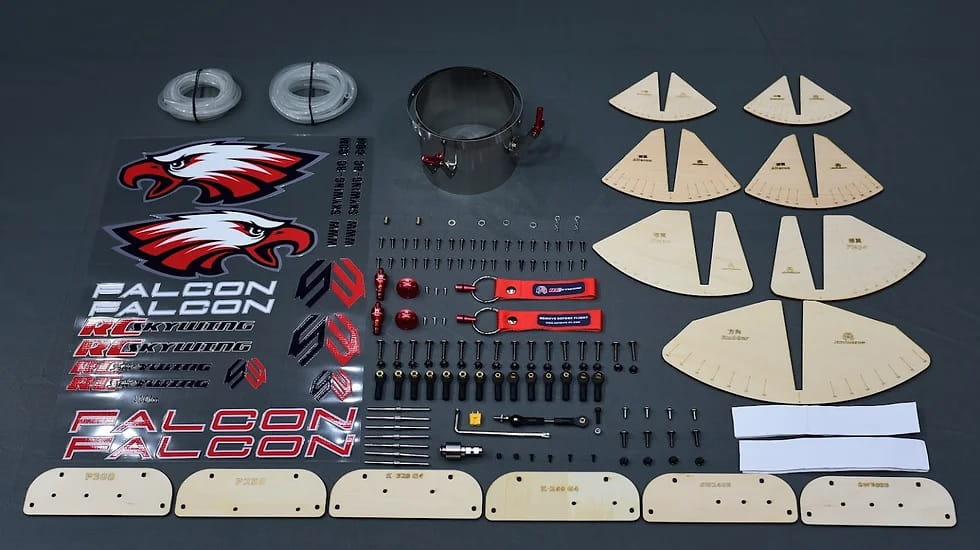

What's in the box:

• High-quality servo cables

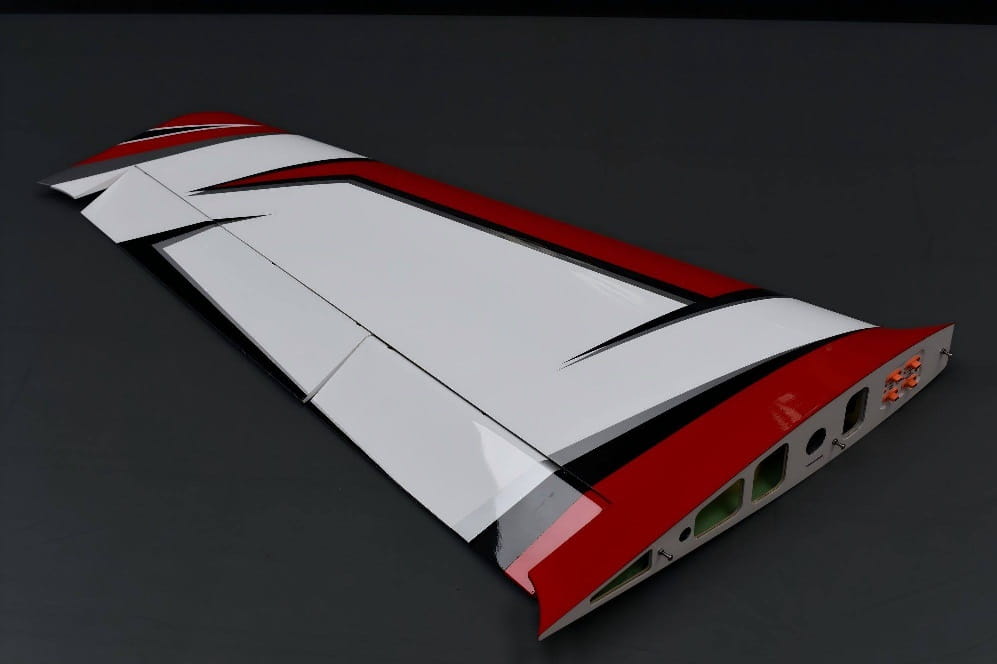

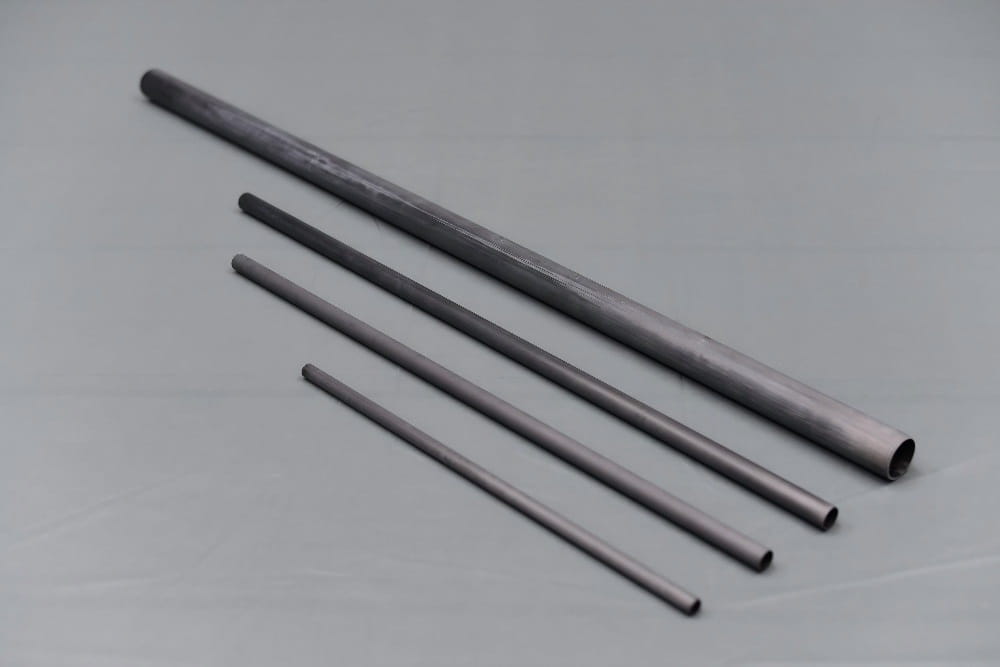

• Carbon tubes for wings and horizontal stabilizers

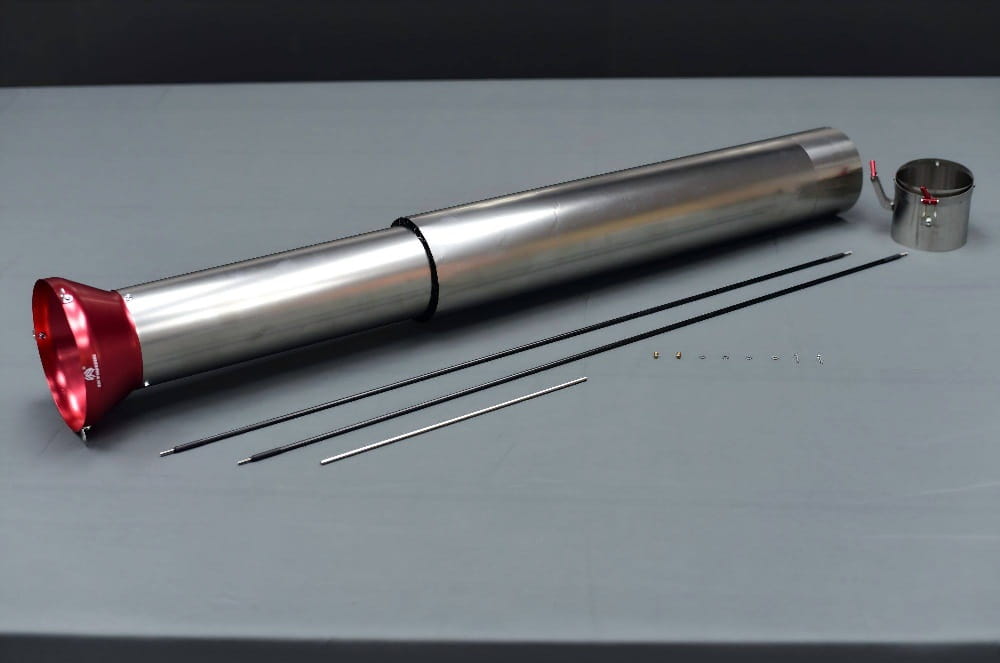

• Jet pipe
• Vector (including vector putter)

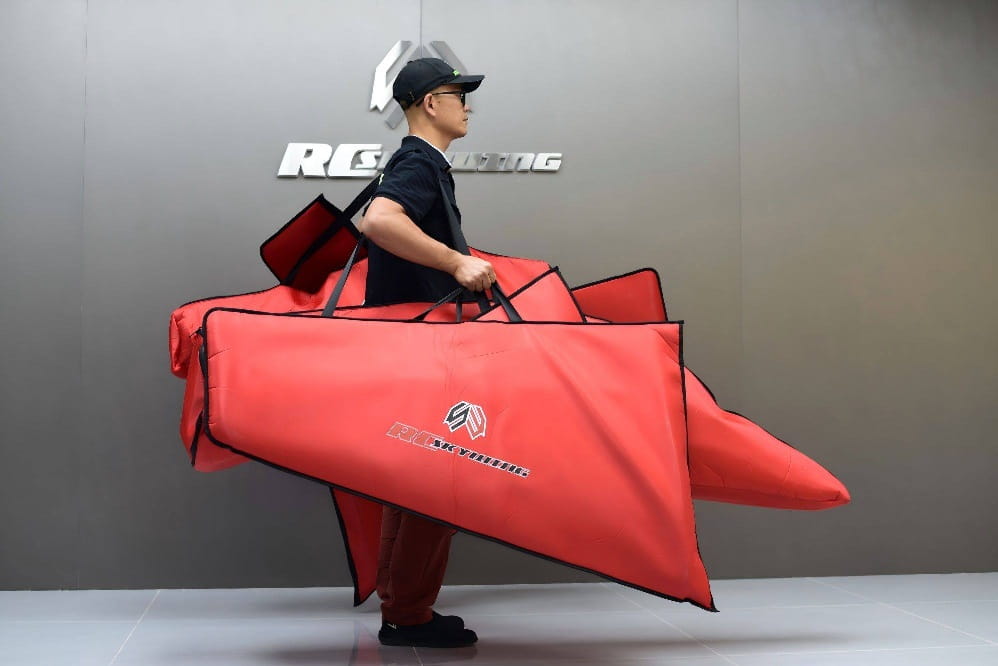

• Covers for the fuselage, wings and horizontal stabilizers

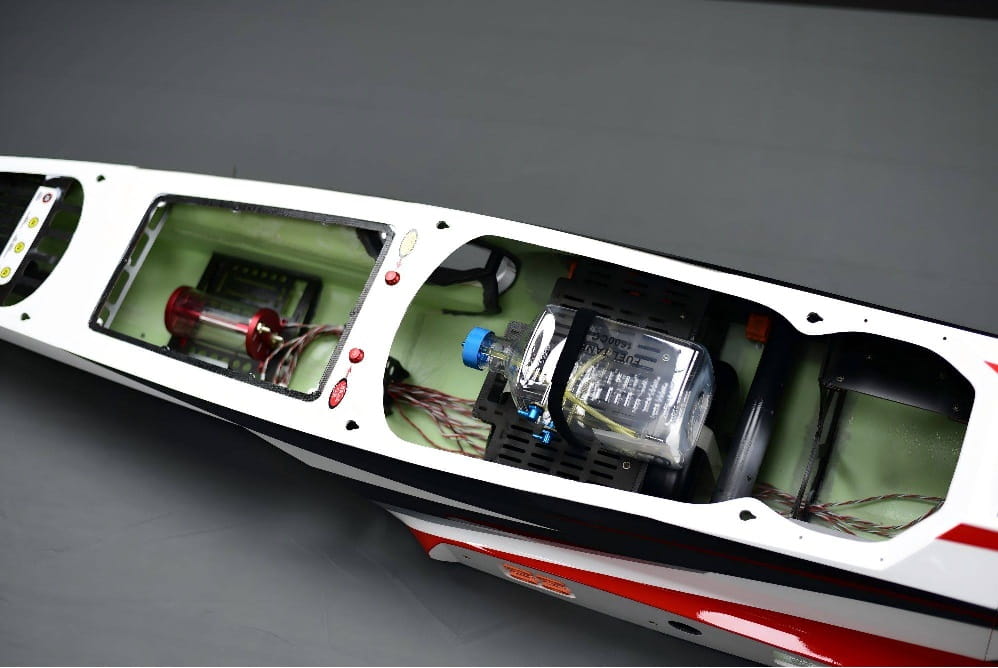

• Fuel tank (5000 ml)

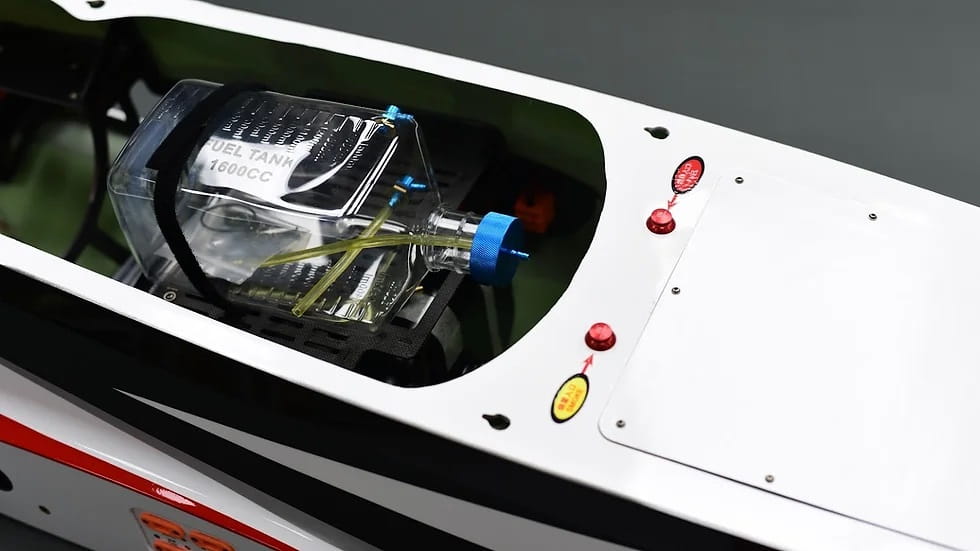

• Smoke tank (1600 ml)

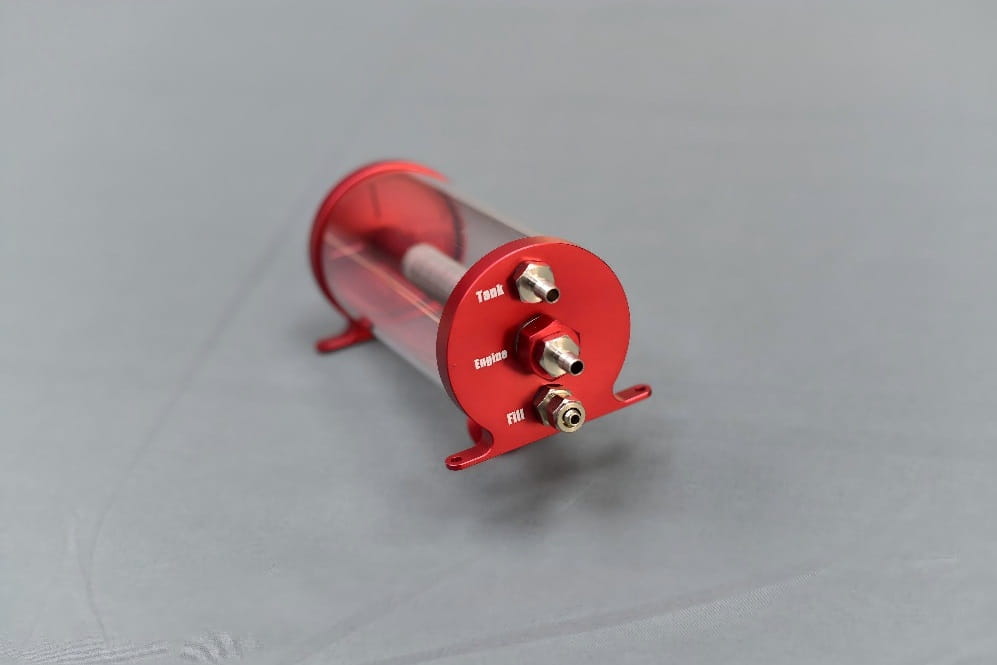

• UAT tank (280 ml)
• Equipment for the fuel system (fuel lines, 2 x fuel filler, 2 x air vent)

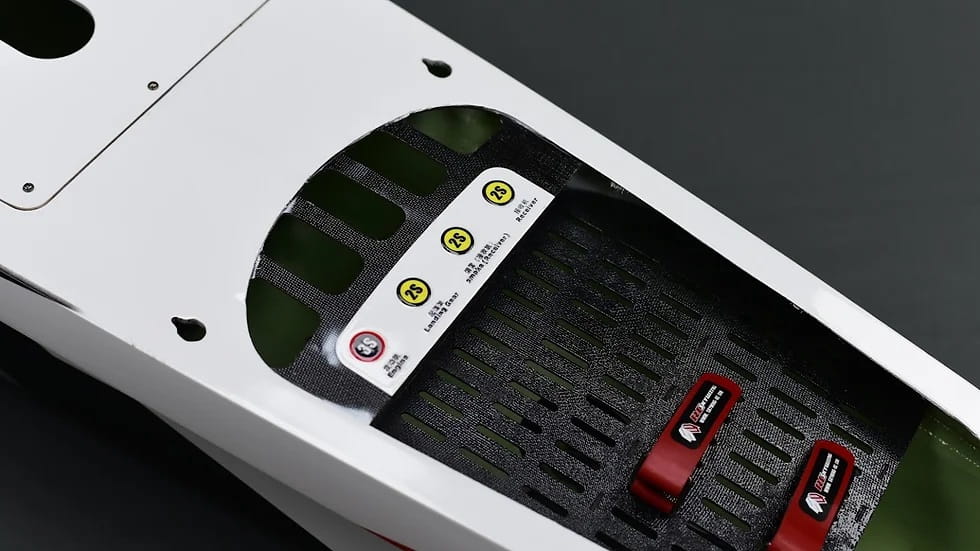

• High-quality magic ties for battery installation
• Pushrod

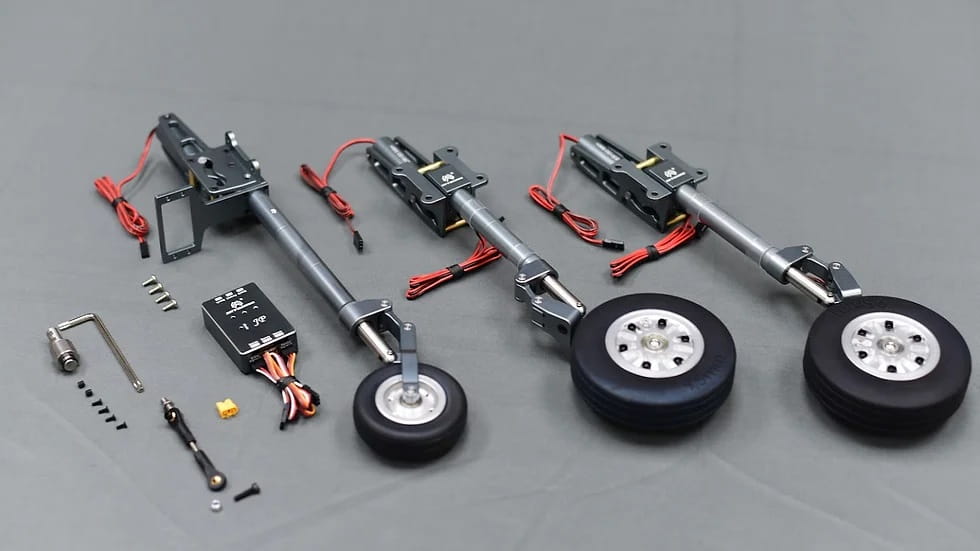

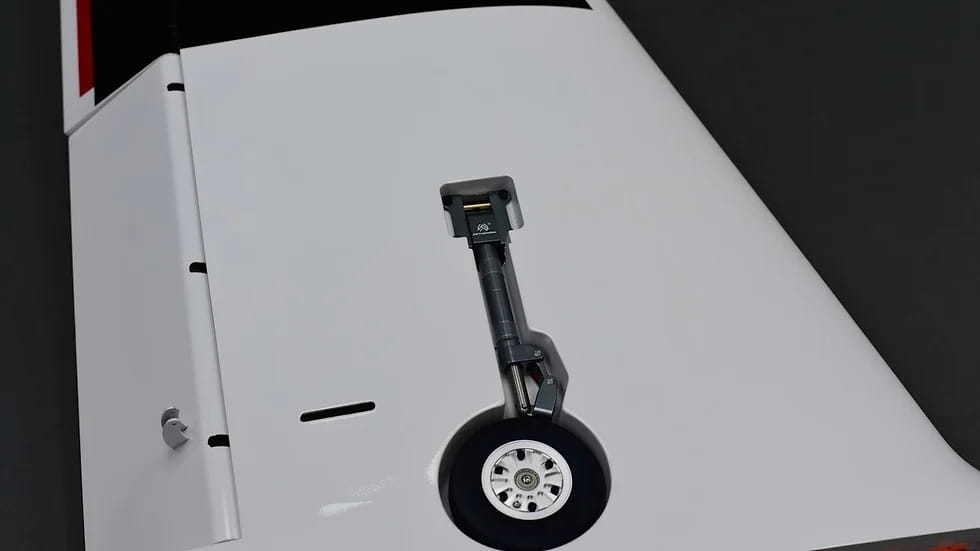

• Retractable JP landing gear

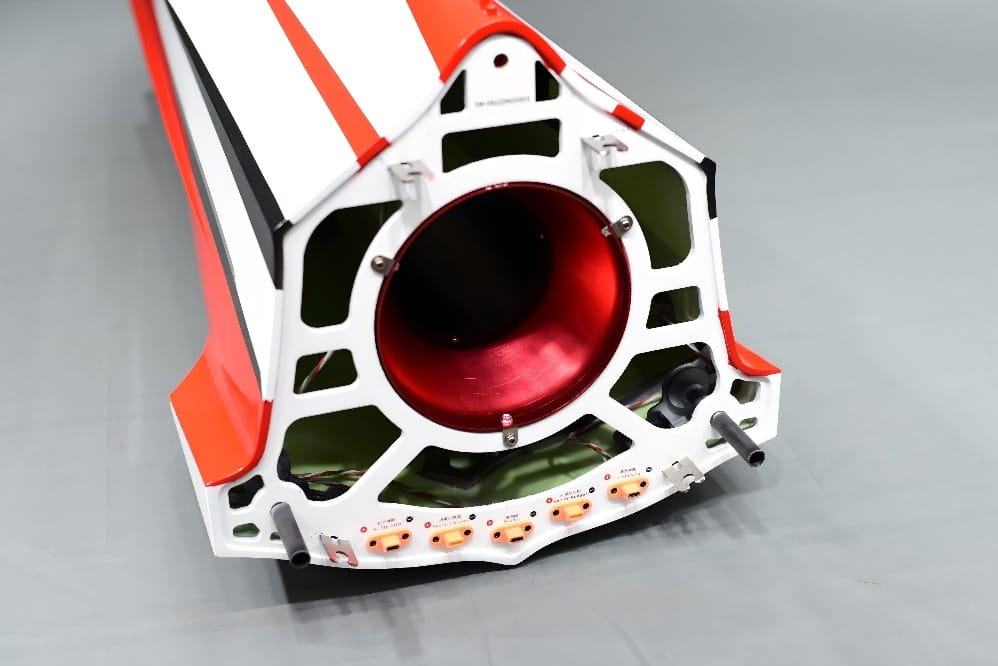

• Power connectors (3 x XT60E yellow, 1 x XT60E black)

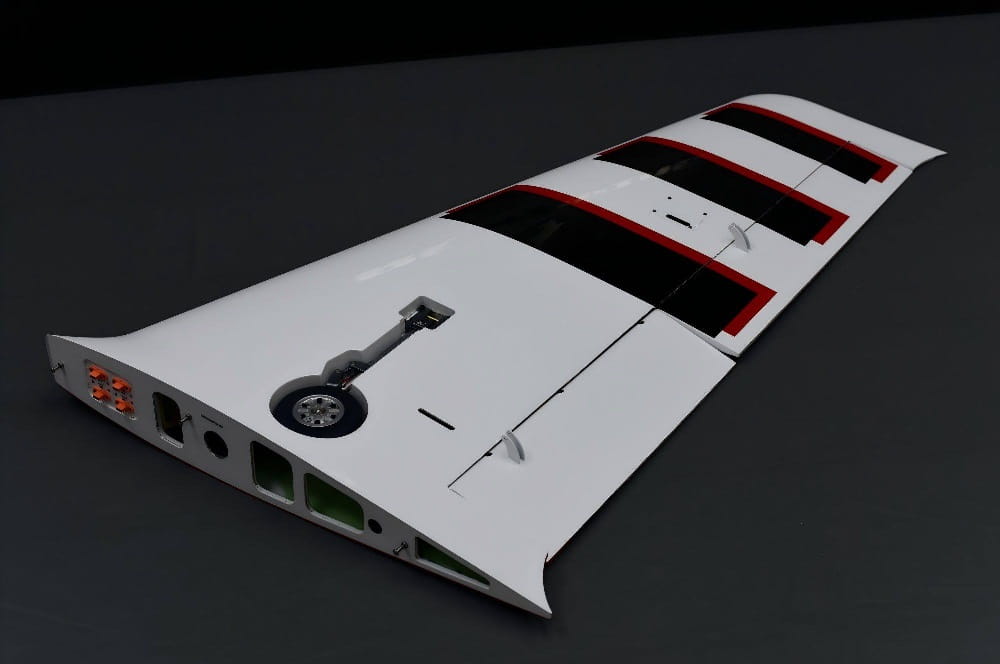

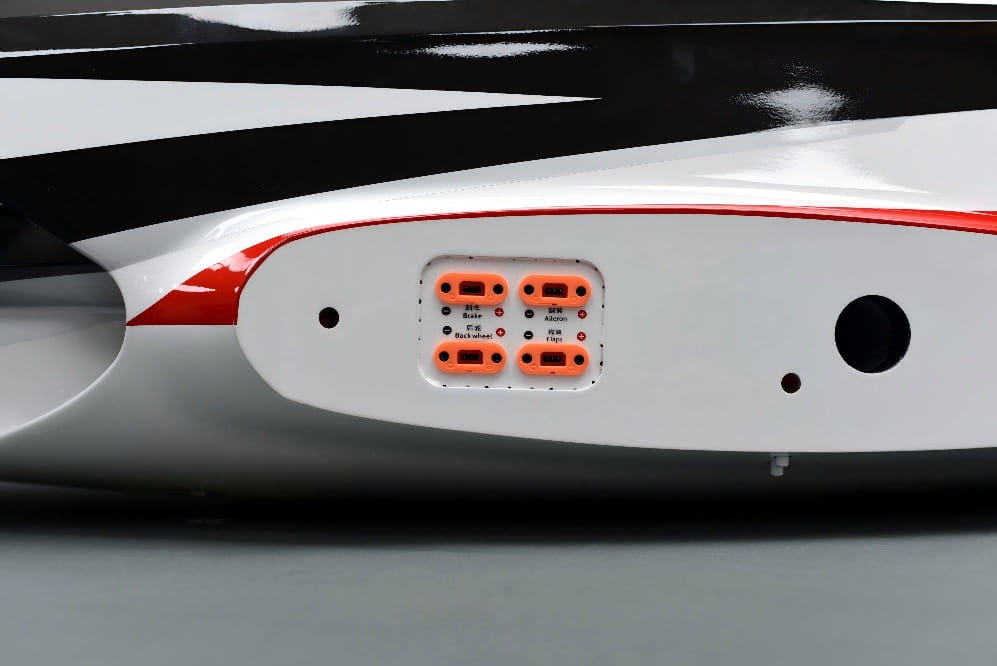

• Mounted wing connectors
• Marking board for measuring each control surface

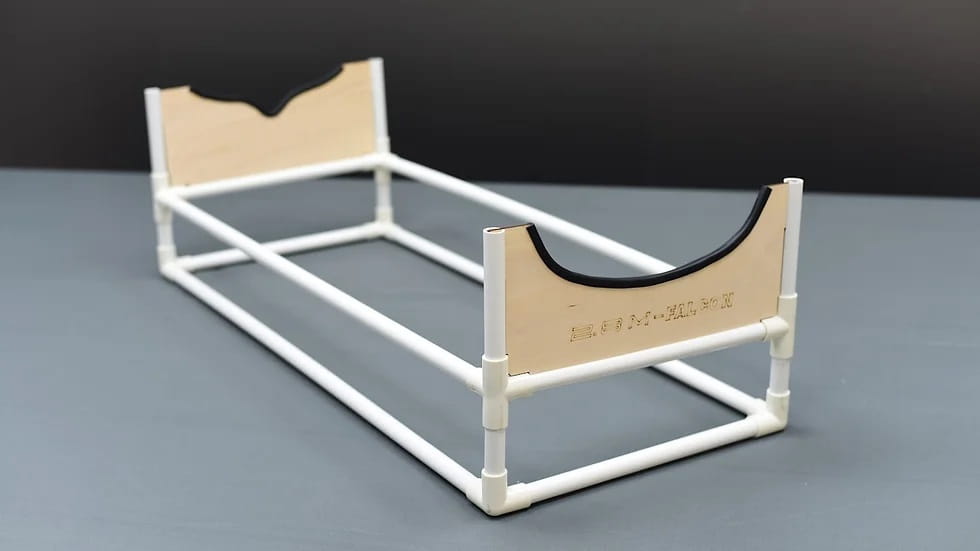

• Aircraft mounting stand

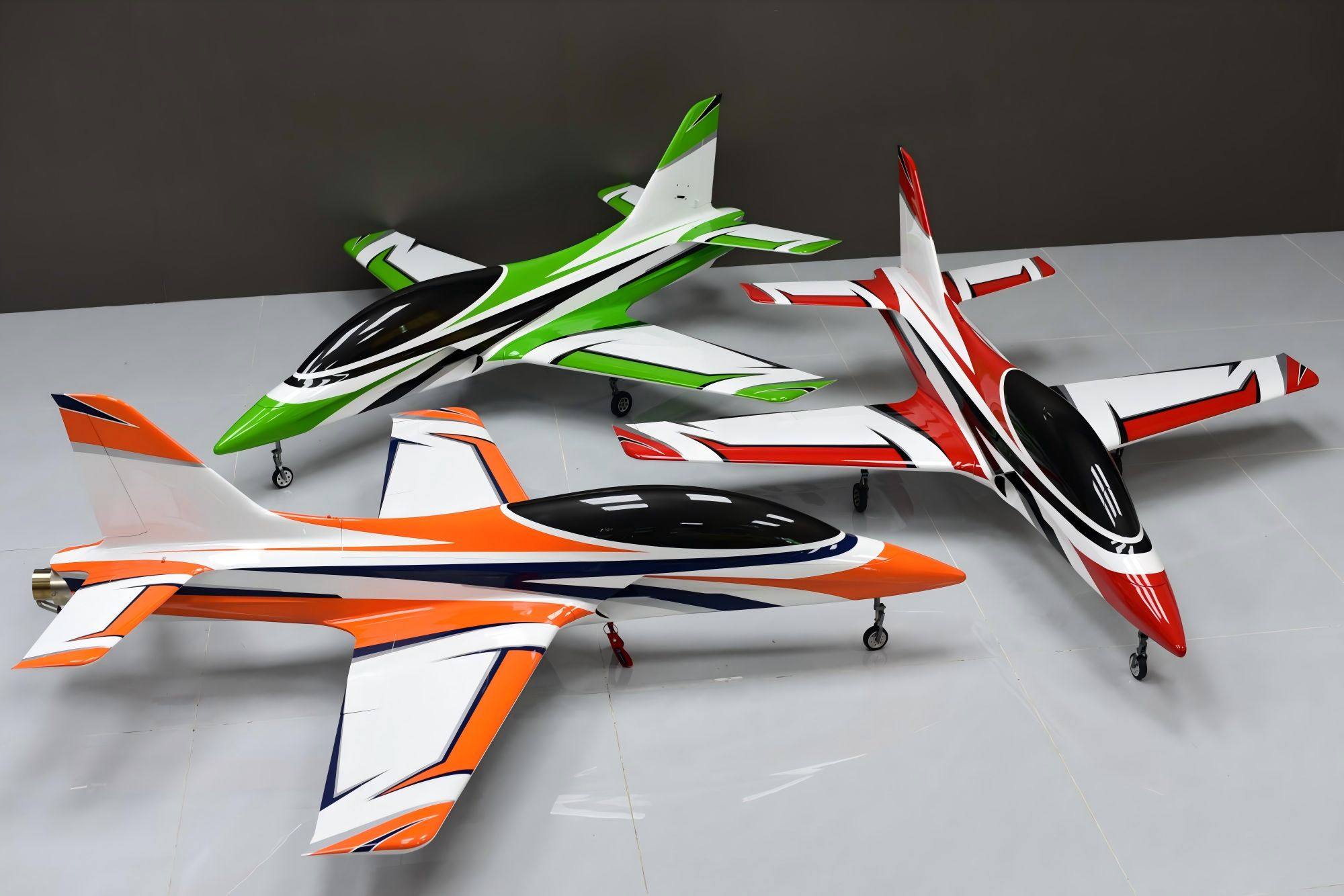

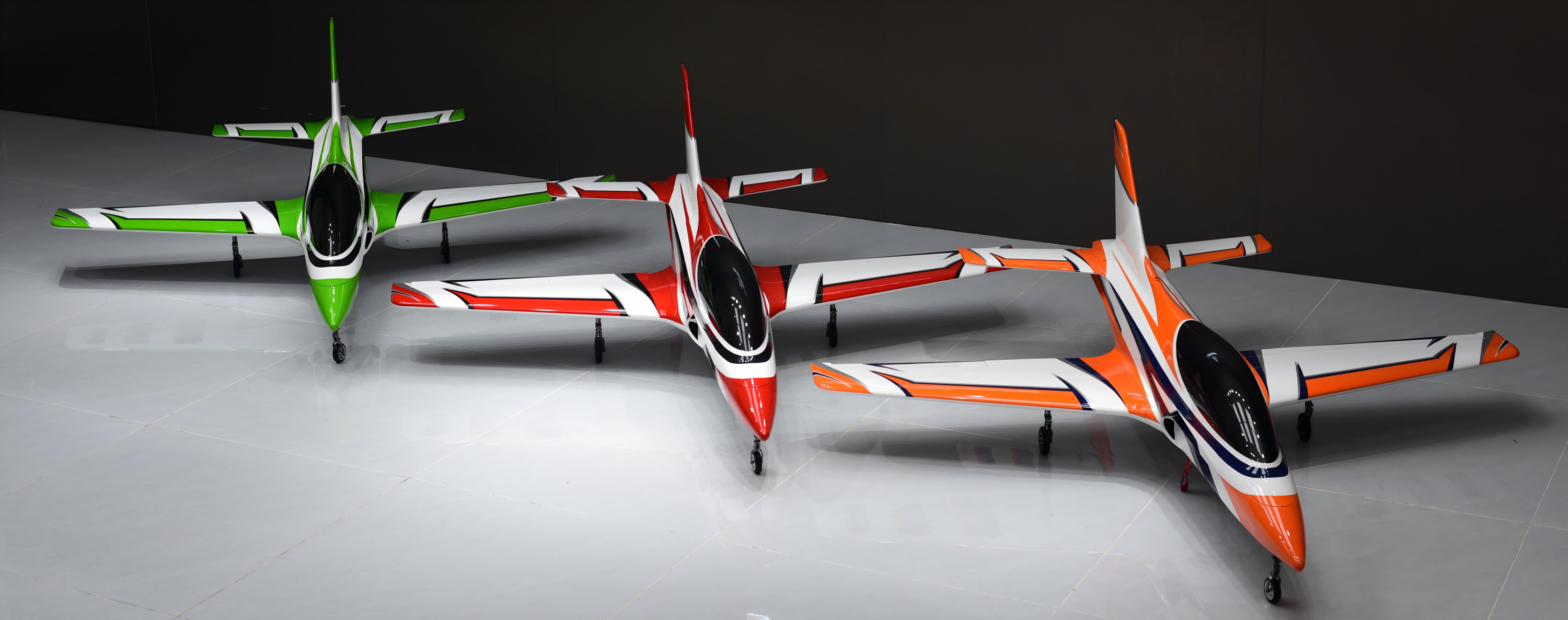

• Available in 5 color variants:
• White – prepared for painting
• Red – White – Black
• Green – White – Black
• Orange – White – Blue
• Yellow – Red – Black

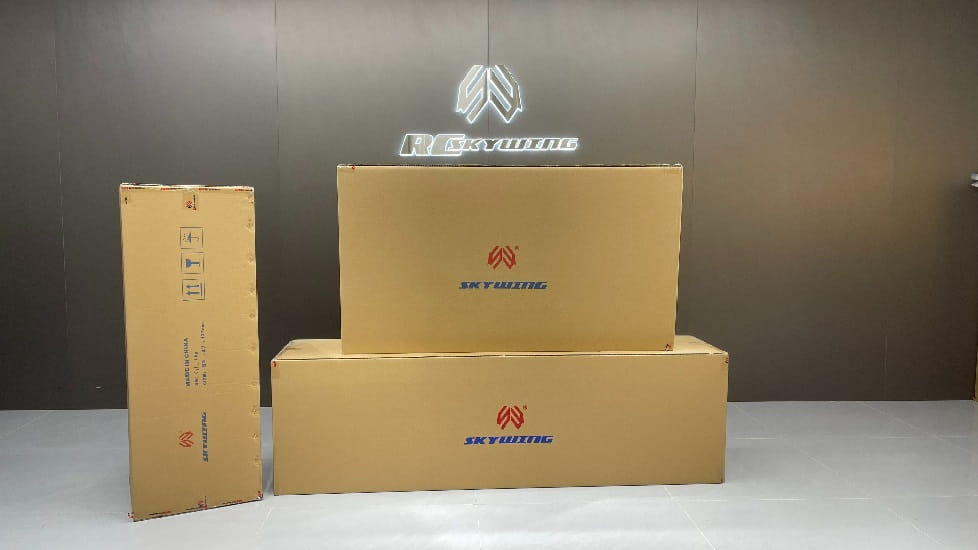

Note: This product is shipped in three separate packages. The package no 1 has dimensions 58 x 48 x 192 cm (weight – 19,6 kg), the package no 2 has dimensions 83 x 47 x 127 cm (weight – 10,2 kg), the package no 3 has dimensions 80 x 28 x 144 cm (weight – 11,9 kg).

What you need to complete the set:

Servos:

• Flaps – 2 pieces (dimensions 40x20 mm with a minimum pull of 38 kg)
• Ailerons – 2 pieces (dimensions 40x20 with a minimum pull of 38 kg)
• Elevators – 2 pieces (dimensions 40x20 with a minimum pull of 38 kg)
• Rudder – 1 piece (dimensions 40x20 with a minimum pull of 38 kg)
• Vector – 2 pieces (dimensions 40x20 with a minimum pull of 38 kg)
• Front steering wheel – 1 piece (dimensions 40x20 with a minimum pull of 38 kg)

Servo levers:

• Flaps – 1.25” M3 - 2 pieces
• Ailerons – 1.25” M3 – 2 pieces
• Elevators – 1.25” M3 – 2 pieces
• Rudder – 1.25” M3 – 1 piece
• Vector – 1.5” M3 – 2 pieces
• Front steering wheel – 1.25” M3 – 1 piece
