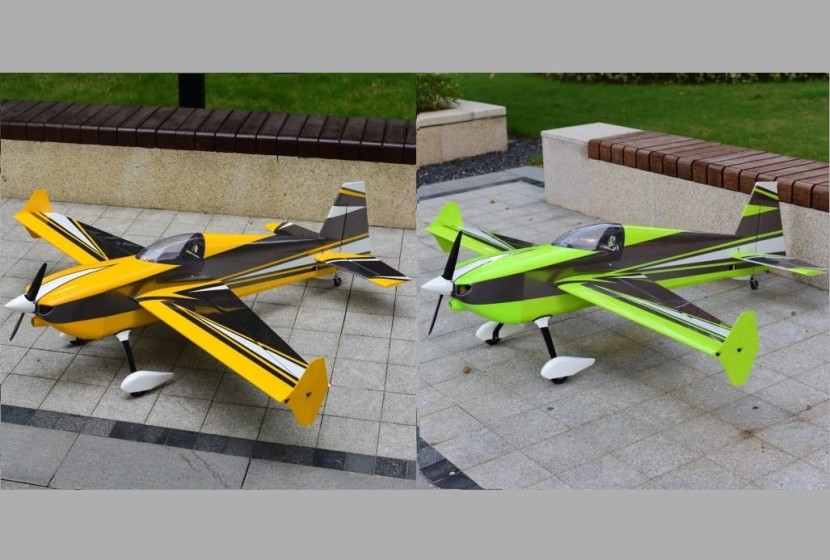

Skywing - Edge 540 - 74"

Basic information:

Wingspan: 74 in / 1870 mm

Length: 72,6 in / 1844 mm

Wing area: 957,9 sq in / 61,8 dm2

Weight: 11,46 lbs / 5,2 kg

What's in the box:

• Construction made of a combination of wooden plywood and carbon fiber
• Skywing patented quick assembly of the cabin, wings and horizontal stabilizers
• Main landing gear mounting reinforced with aluminum angles
• Engine house made of wooden plywood and carbon fiber
• Main landing gear made of carbon fiber with prepared holes for installation
• Prepared tail landing gear made of carbon fiber with a steering wheel
• Wing tube and horizontal stabilizer tubes made of carbon fiber
• Glued hinges for all control surfaces (wing ailerons, elevator, rudder)
• Taped gaps on ailerons and elevators
• Carbon fiber horns
• Wheels for the main landing gear with aluminum axles
• Covers with pre-drilled mounting holes
• Servo cables for horizontal stabilizers and rudder mounted in a protective sleeve
• High-quality ball snaps and pushers for all control surfaces
• Fuel tank with accessories (fuel tubes, fuel filler, vent cap)
• Carbon spinner with aluminum base and propeller drilling template
• Side force generator for wings
• Wing and horizontal stabilizers covers
• 2 color variants available:
• Gray – Green (cover color number: white – 10, fluorescent green – sw06, metal gray – sw04)
• Gray – Yellow (cover color number: white – 10, yellow – 30, metal gray – sw04

Note: This product is shipped in a single box measuring 142 x 57 x 31 cm (weight – 10 kg).

What you need to complete the set:

• Gasoline engine with a capacity of 30 – 40 cm3
• Carbon propeller (20x8, 20x9, 20x10)
• Gas servo with high-speed metal gears – 1 piece
• Servo with metal gears with high torque: 40x20 mm min. 20kg – 5 pieces
• Servo arms - Ailerons: 1.5” – 2 pieces, Elevator: 1.5” – 2 pieces, Rudder: 1.5” – 1 piece
• Extension cable for throttle: approx. 150 mm – 1 piece
• Extension cable for servos mounted in the aileron: approx. 150 mm – 2 pieces
