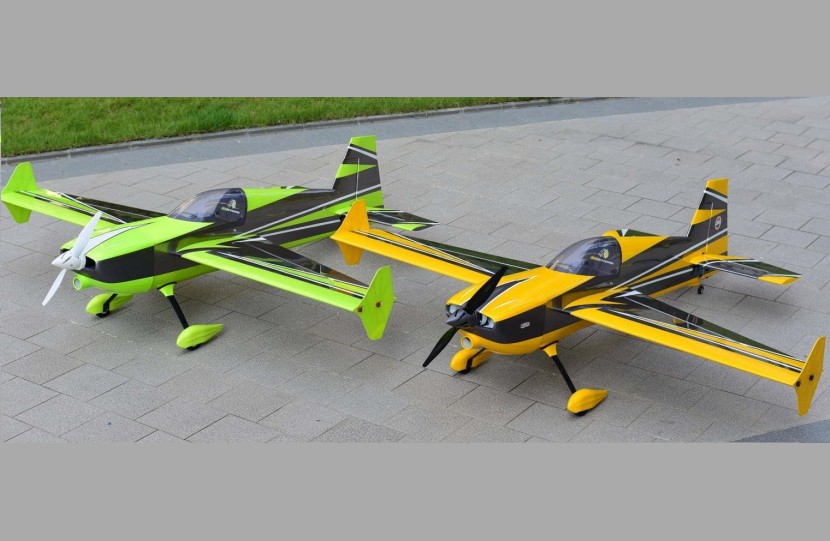

Skywing - Edge 540 - 61"

Basic information:

Wingspan: 61 in / 1550 mm

Length: 60 in / 1528 mm

Wing area: 695,8 sq in / 44,9 dm2

Weight: 6,6 lbs / 3,0 kg

What's in the box:

• Construction made of a combination of wooden plywood and carbon fiber
• Skywing patented quick assembly of the cabin, wings and horizontal stabilizers
• Engine house made of wooden plywood and carbon fiber
• Main landing gear made of carbon fiber with prepared holes for installation
• Prepared tail landing gear made of carbon fiber with a steering wheel
• Wing tube made of carbon fiber
• Glued hinges for all control surfaces (wing ailerons, elevator)
• Taped gaps on ailerons and elevators
• Carbon fiber horns
• Wheels for the main landing gear with aluminum axles
• Covers with pre-drilled mounting holes
• Servo cables for horizontal stabilizers and rudder
• High-quality ball snaps and pushers for all control surfaces
• Spinner with base
• Side force generator for wings
• Wing and horizontal stabilizers covers
• 2 color variants available:
• Gray – Green (cover color number: white – 10, fluorescent green – sw06, metal gray – sw04)
• Gray – Yellow (cover color number: white – 10, yellow – 30, metal gray – sw04

Note: This product is shipped in a single box measuring 128 x 49 x 27 cm (weight – 7,0 kg).

What you need to complete the set:

• Electric engine (t.g. Dualsky GA1500R)
• Regulator ESC 90-120A
• Carbon propeller (16x8)
• Servo with metal gears with high torque: 35x15 mm min. 10 kg – 4 pieces
• Servo arms - Ailerons: 1” – 2 pieces, Elevator: 1.25” – 1 pieces, Rudder: 1.25” – 1 piece
