Skywing - Edge 540 - 116"

Basic information:

Wingspan: 116 in / 2946  mm

Length: 115 in / 2924 mm

Wing area: 2228,9 sq in / 143,8 dm2

Weight: 36,1 lbs / 16,4 kg

What's in the box:

• Construction made of a combination of wooden plywood and carbon fiber
• Skywing patented quick assembly of the cabin, wings and horizontal stabilizers
• Main landing gear mounting reinforced with aluminum angles
• Engine house made of wooden plywood and carbon fiber
• Muffler tunnel made of material resistant to high temperatures, oil and gasoline
• Main landing gear made of carbon fiber with prepared holes for installation
• Prepared tail landing gear made of carbon fiber with a steering wheel
• Wing tube and horizontal stabilizer tubes made of carbon fiber
• Glued hinges for all control surfaces (wing ailerons, elevator, rudder)
• Taped gaps on ailerons and elevators
• Carbon fiber horns
• Quickly removable rudder
• Wheels for the main landing gear with aluminum axles
• Covers with pre-drilled mounting holes
• Servo cables for horizontal stabilizers and rudder mounted in a protective sleeve
• High-quality ball snaps and pushers for all control surfaces
• Fuel tank with accessories (fuel tubes, fuel filler, vent cap)
• Various types of "canister" silencer mountings prepared
• Carbon cap with aluminum base and propeller drilling template
• Wing covers and horizontal stabilizers

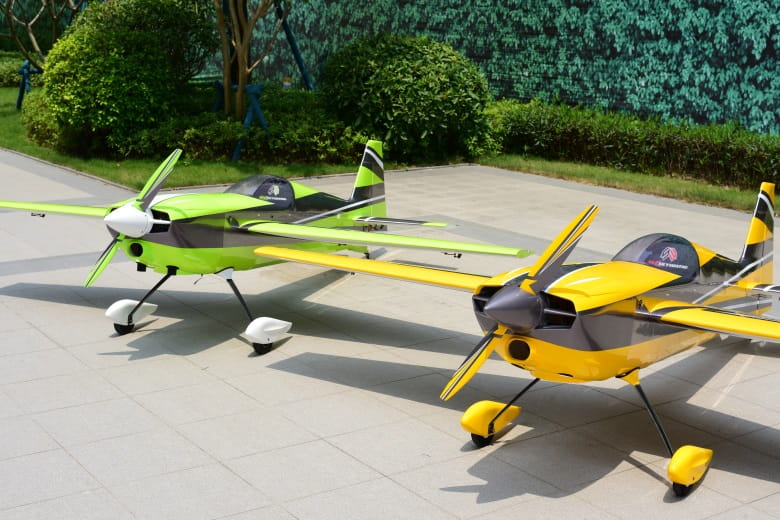

• 2 color variants available:
• Gray – Green (cover color number: white – 10, fluorescent green – sw06, metal gray – sw04)
• Gray – Yellow (cover color number: white – 10, yellow – 30, metal gray – sw04)

Note: This product is shipped in three separate packages. The package with the fuselage has dimensions 228 x 59 x 48 cm (weight - 16.5 kg), the package with the wings has dimensions 144 x 77 x 22 cm (weight - 8.0 kg), the package with the mask has dimensions 49 x 47 x 45  cm (weight - 2.9 kg).

What you need to complete the set:

• Gasoline engine with a capacity of 150 - 215 cm3
• Carbon propeller (30x13, 31x12, 32x10)
• Gas servo with high-speed metal gears – 1 piece
• Servo with metal gears with high torque (min. 40 kg or more) – 7-8 pieces
• Servo arms - Ailerons: 1.75” – 4 pieces, Elevator: 2” – 2 pieces, Rudder: 2” – 1 or 2 pieces
• Extension cable for throttle: approx. 500 mm
• Extension cable for servos mounted in the aileron: approx. 700 mm – 2 pieces / approx. 150 mm – 2 pieces
